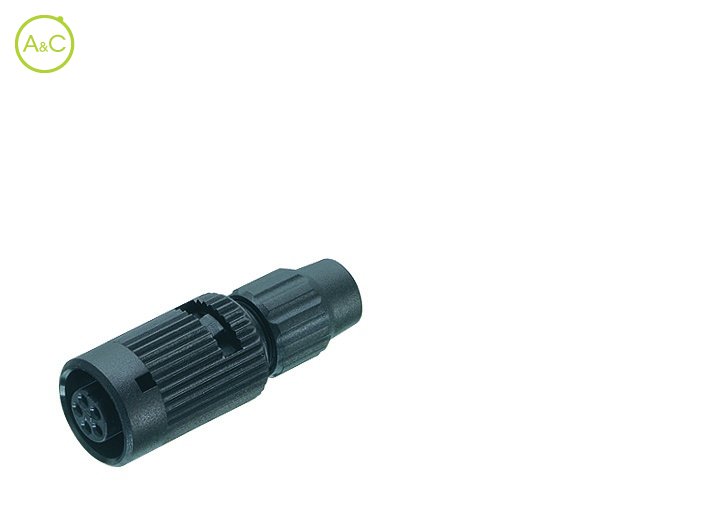

Female cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	99 0972 100 02	99 0972 102 02

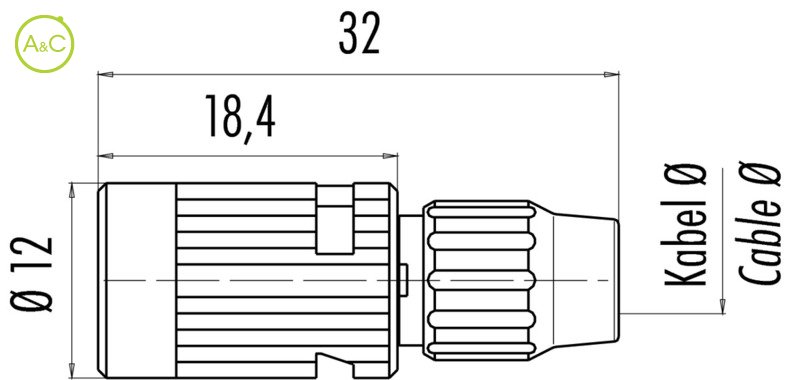

Connector Diameter	12 mm	12 mm
Number Of Contacts	2 contacts	2 contacts
Connector Locking System	Bayonet	Bayonet
Termination	Solder	Solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)	PA (UL 94 HB)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 0976 100 03	99 0976 102 03
Connector Diameter	12 mm	12 mm
Number Of Contacts	3 contacts	3 contacts
Connector Locking System	Bayonet	Bayonet
Termination	Solder	Solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)	PA (UL 94 HB)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 0980 100 04	99 0980 102 04
Connector Diameter	12 mm	12 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Bayonet	Bayonet
Termination	Solder	Solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	3 A	3 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)	PA (UL 94 HB)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 0996 100 05	99 0996 102 05
Connector Diameter	12 mm	12 mm
Number Of Contacts	5 contacts	5 contacts
Connector Locking System	Bayonet	Bayonet
Termination	Solder	Solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	3 A	3 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)	PA (UL 94 HB)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 9476 100 07	99 9476 102 07
Connector Diameter	12 mm	12 mm
Number Of Contacts	7 contacts	7 contacts
Connector Locking System	Bayonet	Bayonet
Termination	Solder	Solder
Wire Section	0.14 mm²	0.14 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	1 A	1 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)	PA (UL 94 HB)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 9480 100 08	99 9480 102 08
Connector Diameter	12 mm	12 mm
Number Of Contacts	8 contacts	8 contacts
Connector Locking System	Bayonet	Bayonet
Termination	Solder	Solder
Wire Section	0.14 mm²	0.14 mm²
Protection Degree	IP40	IP40
Mating Cycles	>500 times	>500 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	125	125
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	1	1
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	1 A	1 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 V-0)	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 HB)	PA (UL 94 HB)
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
