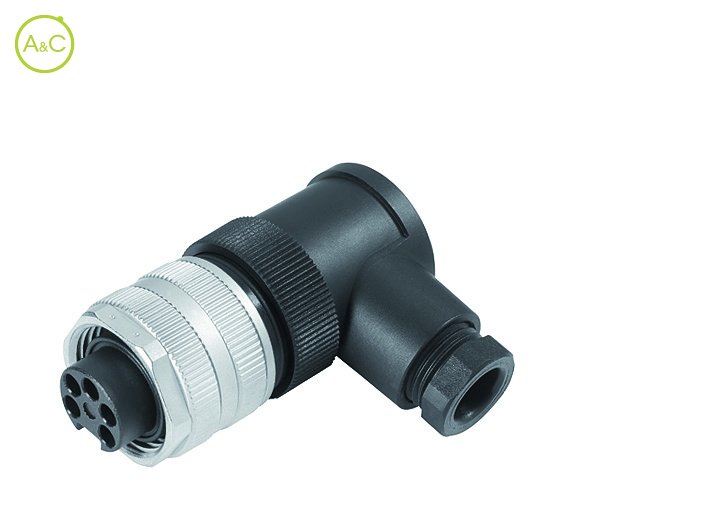

Female angled connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

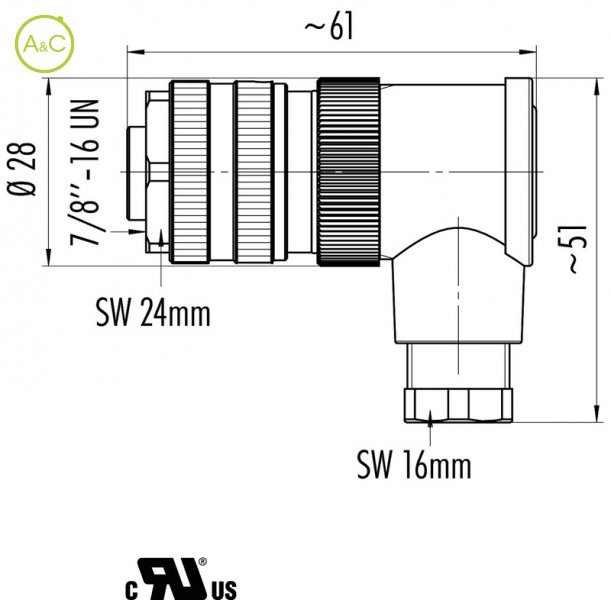

Article Number	99 2440 52 03
Connector Diameter	28 mm
Number Of Contacts	2+PE contacts
Connector Locking System	Screw (7/8"-16 UN)
Termination	Screw
Wire Section	1.5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	300 (UL 600)
Rated Impuls Voltage	4000 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	12 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PUR/PA (UL 94 HB)
Material Of Housing	PBT (UL 94 V-0)
Cable Outlet	6-8 mm
Fiche produit	Télécharger la fiche produit

Article Number	99 2442 52 04
Connector Diameter	28 mm
Number Of Contacts	3+PE contacts
Connector Locking System	Screw (7/8"-16 UN)
Termination	Screw
Wire Section	1.5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	300 (UL 600)
Rated Impuls Voltage	4000 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	9 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PUR/PA (UL 94 HB)
Material Of Housing	PBT (UL 94 V-0)
Cable Outlet	6-8 mm
Fiche produit	Télécharger la fiche produit

Article Number	99 2444 52 05
Connector Diameter	28 mm
Number Of Contacts	4+PE contacts
Connector Locking System	Screw (7/8"-16 UN)
Termination	Screw
Wire Section	1.5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	300 (UL 600)
Rated Impuls Voltage	4000 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	9 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PUR/PA (UL 94 HB)
Material Of Housing	PBT (UL 94 V-0)
Cable Outlet	6-8 mm
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
