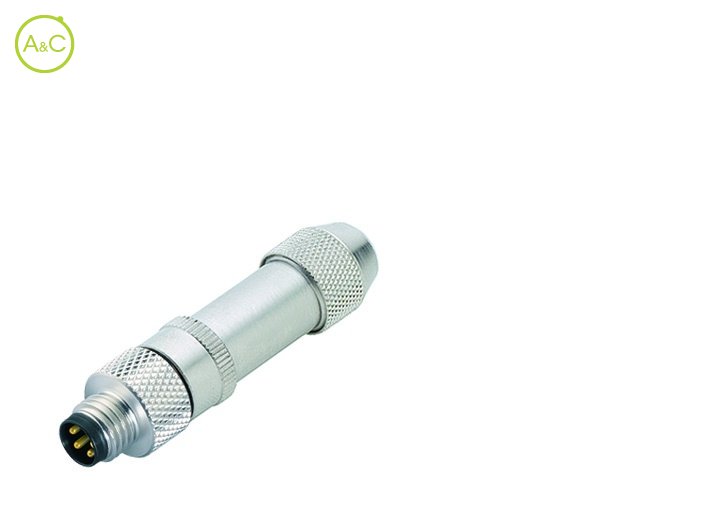

Male cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

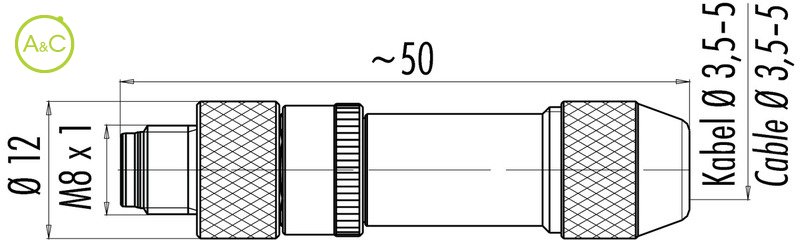

Article Number	99 3361 00 03	99 3361 25 03
Connector Diameter	12 mm	12 mm
Number Of Contacts	3 contacts	3 contacts
Connector Locking System	Screw (M8)	Screw (M8)
Termination	Solder	Solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP67	IP67
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	60	60
Rated Impuls Voltage	800 V	800 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 HB)	PA (UL 94 HB)
Material Of Housing	CuZn (Brass nickel plated)	CuZn (Brass nickel plated)
Cable Outlet	3,5-5 mm	2-3,5 mm
Wire Gauge	24 AWG	24 AWG
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 3363 00 04	99 3363 25 04
Connector Diameter	12 mm	12 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Screw (M8)	Screw (M8)
Termination	Solder	Solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP67	IP67
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	30	30
Rated Impuls Voltage	800 V	800 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA (UL 94 HB)	PA (UL 94 HB)
Material Of Housing	CuZn (Brass nickel plated)	CuZn (Brass nickel plated)
Cable Outlet	3,5-5 mm	2-3,5 mm
Wire Gauge	24 AWG	24 AWG
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
