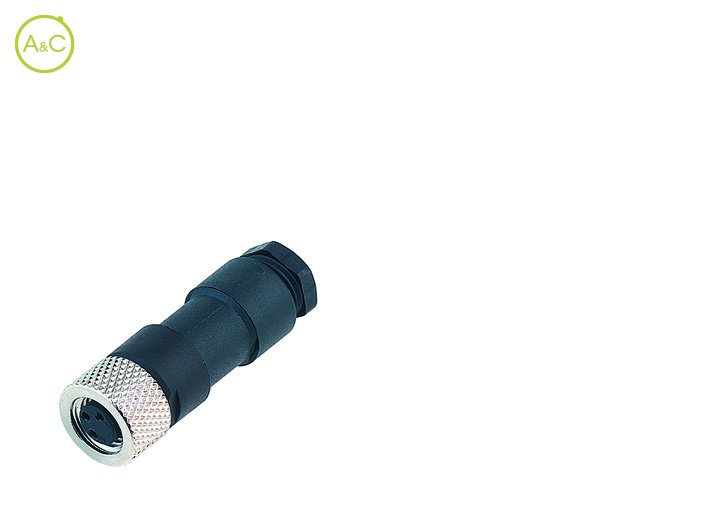

Female cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

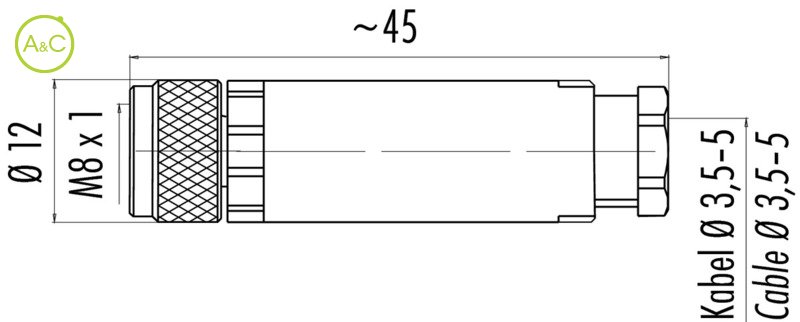

Article Number	99 3400 00 03
Connector Diameter	12 mm
Number Of Contacts	3 contacts
Connector Locking System	Screw (M8)
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze) / CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 HB)
Material Of Housing	PBT/PA/CuZn (Brass)
Cable Outlet	3,5-5 mm
Fiche produit	Télécharger la fiche produit

Article Number	99 3376 00 04
Connector Diameter	12 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M8)
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze) / CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 HB)
Material Of Housing	PBT/PA/CuZn (Brass)
Cable Outlet	3,5-5 mm
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
