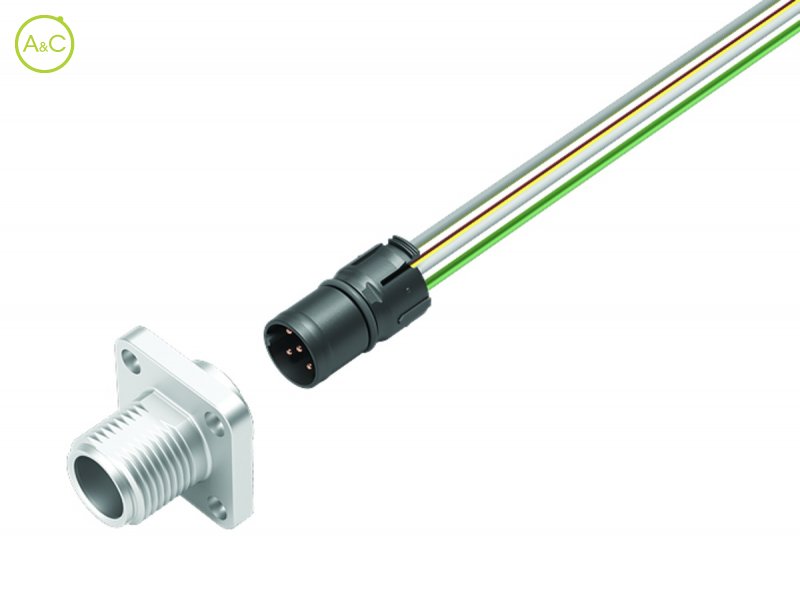

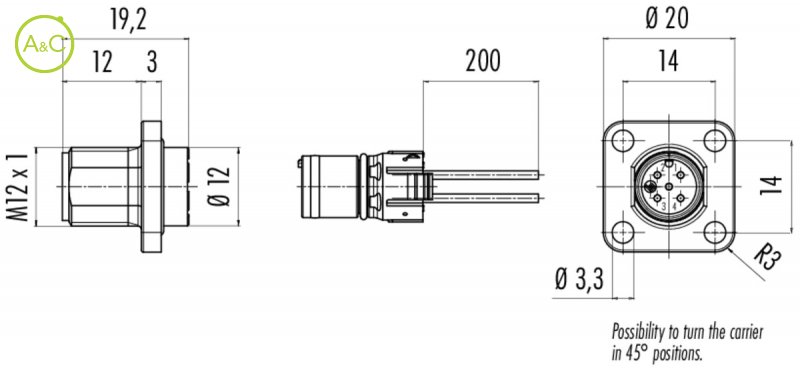

Male panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	99 3433 100 04
Connector Diameter	12 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-A)
Termination	Single wires
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Brass nickel plated, Zinc die-cast nickel-plated
Wire Gauge	24 AWG
Fiche produit	Télécharger la fiche produit

Article Number	99 3443 100 05
Connector Diameter	12 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Single wires
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Brass nickel plated, Zinc die-cast nickel-plated
Wire Gauge	24 AWG
Fiche produit	Télécharger la fiche produit

Article Number	99 3483 100 08
Connector Diameter	12 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M12-A)
Termination	Single wires
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Brass nickel plated, Zinc die-cast nickel-plated
Wire Gauge	24 AWG
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
