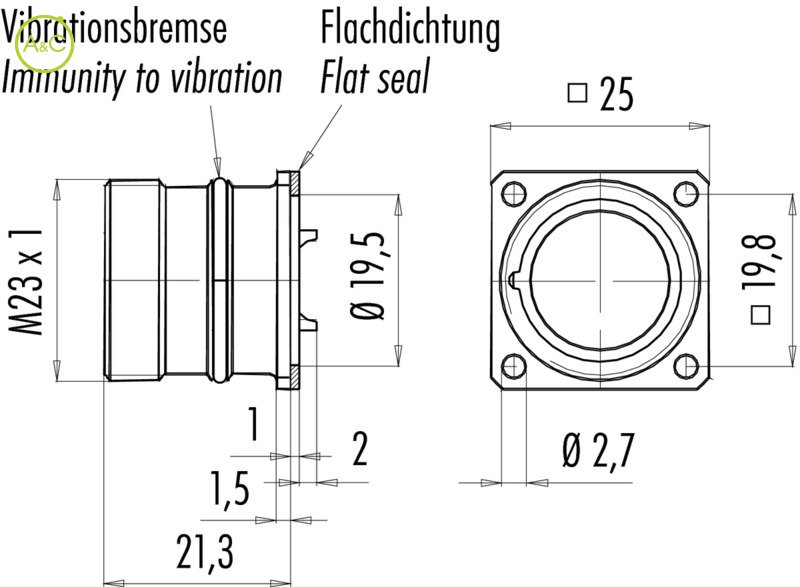

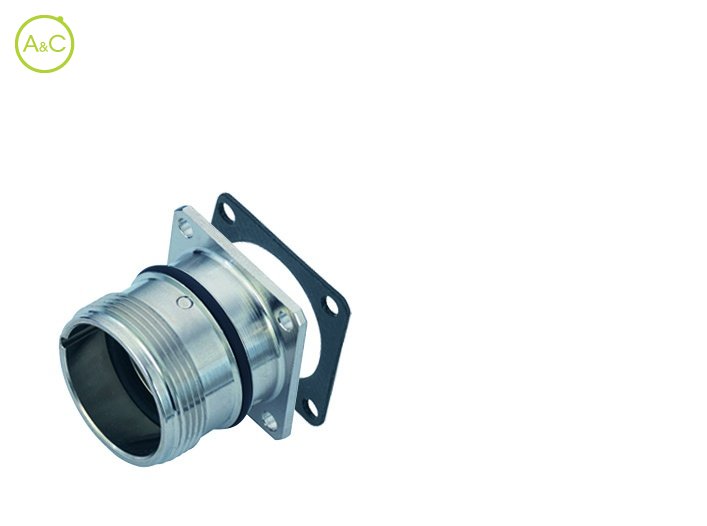

Female panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	99 4638 00 06
Connector Diameter	25 mm
Number Of Contacts	6 contacts, clockwise
Connector Locking System	Screw (M23)
Termination	Solder
Wire Section	2.5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+125 °C
Lower Temperature	-20 °C
Rated Voltage	300
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	20 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT/PA66
Material Of Housing	Zinc die cast nickel plated
Fiche produit	Télécharger la fiche produit

Article Number	99 4604 00 09	99 4604 10 09
Connector Diameter	25 mm	25 mm
Number Of Contacts	9 contacts, clockwise	9 contacts, anticlockwise
Connector Locking System	Screw (M23)	Screw (M23)
Termination	Solder	Solder
Wire Section	8 x 1,5 / 1 x 2,5 mm²	8 x 1,5 / 1 x 2,5 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-20 °C	-20 °C
Rated Voltage	300	300
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	8 x 8 / 1 x 20 A	8 x 8 / 1 x 20 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT/PA66	PBT/PA66
Material Of Housing	Zinc die cast nickel plated	Zinc die cast nickel plated
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 4608 00 12	99 4608 10 12
Connector Diameter	25 mm	25 mm
Number Of Contacts	12 contacts, clockwise	12 contacts, anticlockwise
Connector Locking System	Screw (M23)	Screw (M23)
Termination	Solder	Solder
Wire Section	1 mm²	1 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-20 °C	-20 °C
Rated Voltage	150	150
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	8 A	8 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT/PA66	PBT/PA66
Material Of Housing	Zinc die cast nickel plated	Zinc die cast nickel plated
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	99 4612 00 16
Connector Diameter	25 mm
Number Of Contacts	16 contacts, clockwise
Connector Locking System	Screw (M23)
Termination	Solder
Wire Section	1 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+125 °C
Lower Temperature	-20 °C
Rated Voltage	150
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	8 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT/PA66
Material Of Housing	Zinc die cast nickel plated
Fiche produit	Télécharger la fiche produit

Article Number	99 4634 00 19
Connector Diameter	25 mm
Number Of Contacts	19 contacts, clockwise
Connector Locking System	Screw (M23)
Termination	Solder
Wire Section	16 x 1 / 3 x 1,5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+125 °C
Lower Temperature	-20 °C
Rated Voltage	150
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	16 x 8 / 3 x 10 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT/PA66
Material Of Housing	Zinc die cast nickel plated
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
