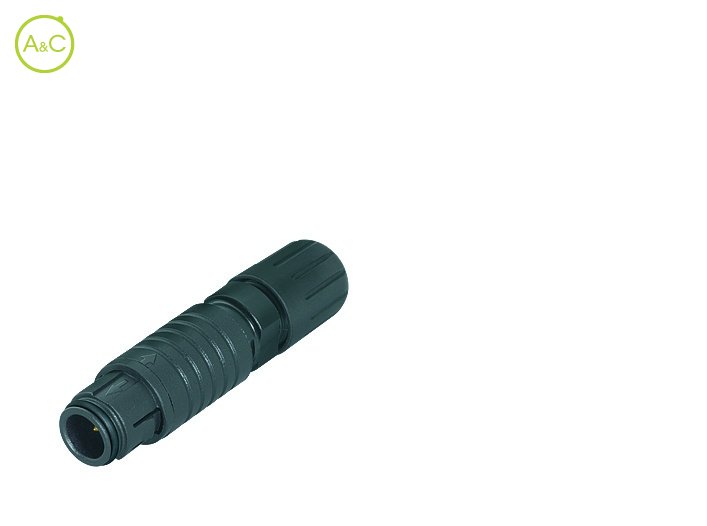

Male cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

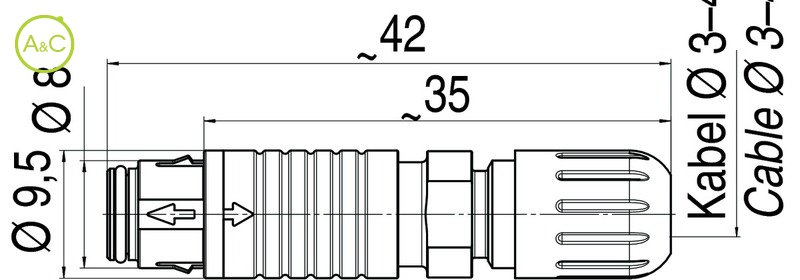

Article Number	99 4705 00 03
Connector Diameter	9.5 mm
Number Of Contacts	3 contacts
Connector Locking System	Micro Push-Pull
Termination	Solder
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>1000 times
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	1 A
Max. Contact Resistance	8 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Cable Outlet	3-4 mm
Fiche produit	Télécharger la fiche produit

Article Number	99 4709 00 04
Connector Diameter	9.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Micro Push-Pull
Termination	Solder
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>1000 times
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	1 A
Max. Contact Resistance	8 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Cable Outlet	3-4 mm
Fiche produit	Télécharger la fiche produit

Article Number	99 4713 00 05
Connector Diameter	9.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Micro Push-Pull
Termination	Solder
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>1000 times
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	1 A
Max. Contact Resistance	8 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Cable Outlet	3-4 mm
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
