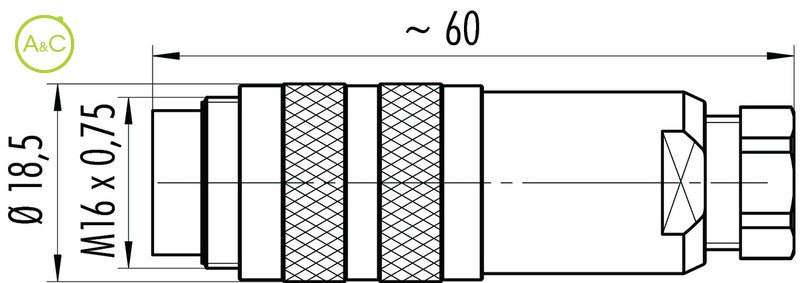

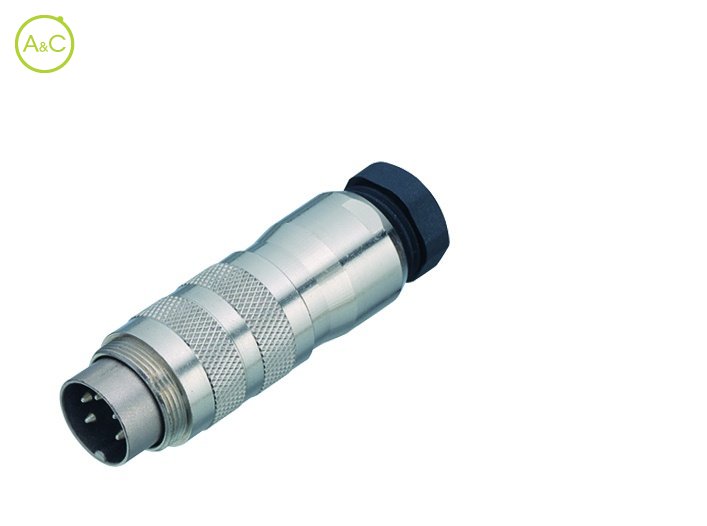

Male cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	99 5105 210 03
Connector Diameter	18.5 mm
Number Of Contacts	3 contacts
Connector Locking System	Screw (M16)
Termination	Screw
Wire Section	0,25 to 1,5 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	250 (32)
Rated Impuls Voltage	1500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	7 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	CuZn (Brass, nickel plated)
Cable Outlet	4-6 mm
Remark**	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Fiche produit	Télécharger la fiche produit

Article Number	99 5109 210 04
Connector Diameter	18.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M16)
Termination	Screw
Wire Section	0,25 to 1,5 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	250 (32)
Rated Impuls Voltage	1500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	6 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	CuZn (Brass, nickel plated)
Cable Outlet	4-6 mm
Remark**	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Fiche produit	Télécharger la fiche produit

Article Number	99 5113 210 05
Connector Diameter	18.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M16)
Termination	Screw
Wire Section	0,25 to 1,5 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	250 (32)
Rated Impuls Voltage	1500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	6 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	CuZn (Brass, nickel plated)
Cable Outlet	4-6 mm
Remark**	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
