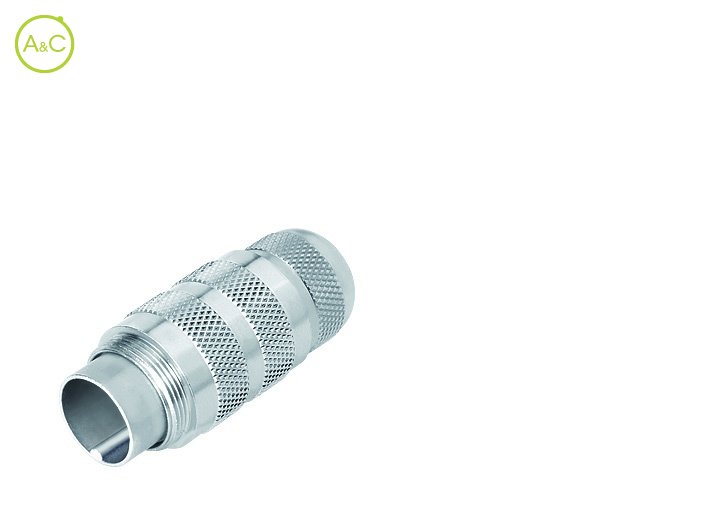

Male cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

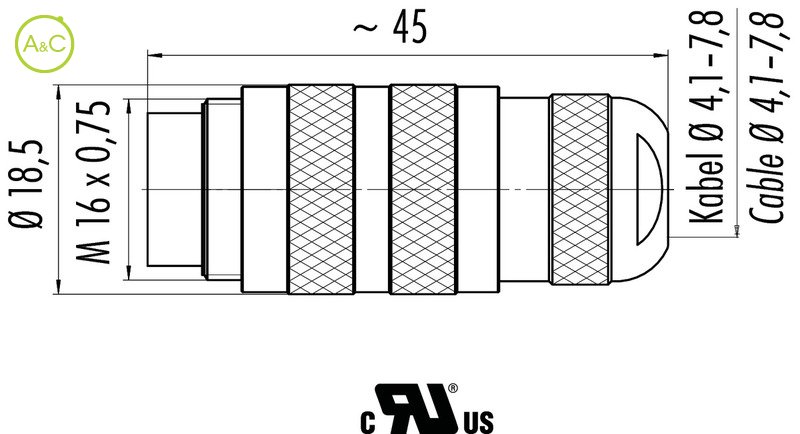

Article Number	99 5109 740 04
Connector Diameter	18.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M16)
Termination	Crimp
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	250 (32)
Rated Impuls Voltage	1500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	6 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	CuZn (Brass, nickel plated)
Cable Outlet	4-8 mm
Remark**	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Fiche produit	Télécharger la fiche produit

Article Number	99 5113 740 05
Connector Diameter	18.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M16)
Termination	Crimp
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	250 (32)
Rated Impuls Voltage	1500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	6 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	CuZn (Brass, nickel plated)
Cable Outlet	4-8 mm
Remark**	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Fiche produit	Télécharger la fiche produit

Article Number	99 5121 740 06
Connector Diameter	18.5 mm
Number Of Contacts	6 contacts
Connector Locking System	Screw (M16)
Termination	Crimp
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	250 (32)
Rated Impuls Voltage	1500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	CuZn (Brass, nickel plated)
Cable Outlet	4-8 mm
Remark**	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Fiche produit	Télécharger la fiche produit

Article Number	99 5125 740 07
Connector Diameter	18.5 mm
Number Of Contacts	7 contacts
Connector Locking System	Screw (M16)
Termination	Crimp
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	125 (32)
Rated Impuls Voltage	800 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	CuZn (Brass, nickel plated)
Cable Outlet	4-8 mm
Remark**	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Fiche produit	Télécharger la fiche produit

Article Number	99 5171 740 08
Connector Diameter	18.5 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M16)
Termination	Crimp
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+95 °C
Lower Temperature	-40 °C
Rated Voltage	60 (32)
Rated Impuls Voltage	500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	CuZn (Brass, nickel plated)
Cable Outlet	4-8 mm
Remark**	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
