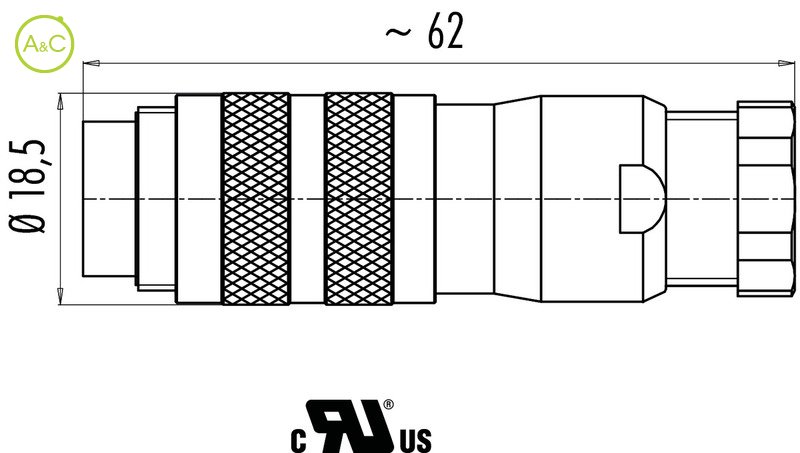

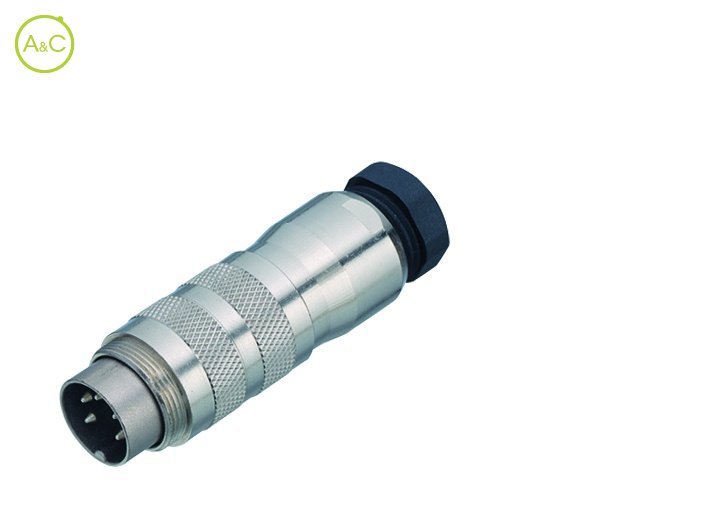

Male cable connector
- With shielding ring, shieldable
- UL-approval
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Binder
Number Of Poles
- 2
- 3 DIN
- 4
- 5
- 5 (Stereo)
- 6 DIN
- 7
- 7 DIN
- 8 DIN
- 12
- 14
- 16
- 19
- 24
Article Number | 99 5601 15 02 | 99 5601 19 02 |
Connector Diameter | 18.5 mm | 18.5 mm |
Number Of Contacts | 2 contacts | 2 contacts |
Connector Locking System | Screw (M16) | Screw (M16) |
Termination | Solder | Solder |
Wire Section | 0.75 mm² | 0.75 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >500 times | >500 times |
Upper Temperature | +95 °C | +95 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 250 (32) | 250 (32) |
Rated Impuls Voltage | 1500 V | 1500 V |
Pollution Degree | 1 (2)* | 1 (2)* |
Overvoltage Categorie | I (II)* | I (II)* |
Material Group | III | III |
Rated Current (40°) | 7 A | 7 A |
Max. Contact Resistance | 5 mΩ | 5 mΩ |
Material Of Contact | CuZn (Brass) | CuZn (Brass) |
Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
Material Of Housing | CuZn (Brass, nickel plated) | CuZn (Brass, nickel plated) |
Cable Outlet | 6-8 mm | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Article Number | 99 5605 15 03 | 99 5605 19 03 |
Connector Diameter | 18.5 mm | 18.5 mm |
Number Of Contacts | 3 DIN contacts | 3 DIN contacts |
Connector Locking System | Screw (M16) | Screw (M16) |
Termination | Solder | Solder |
Wire Section | 0.75 mm² | 0.75 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >500 times | >500 times |
Upper Temperature | +95 °C | +95 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 250 (32) | 250 (32) |
Rated Impuls Voltage | 1500 V | 1500 V |
Pollution Degree | 1 (2)* | 1 (2)* |
Overvoltage Categorie | I (II)* | I (II)* |
Material Group | III | III |
Rated Current (40°) | 7 A | 7 A |
Max. Contact Resistance | 5 mΩ | 5 mΩ |
Material Of Contact | CuZn (Brass) | CuZn (Brass) |
Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
Material Of Housing | CuZn (Brass, nickel plated) | CuZn (Brass, nickel plated) |
Cable Outlet | 6-8 mm | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Article Number | 99 5609 15 04 | 99 5609 19 04 |
Connector Diameter | 18.5 mm | 18.5 mm |
Number Of Contacts | 4 contacts | 4 contacts |
Connector Locking System | Screw (M16) | Screw (M16) |
Termination | Solder | Solder |
Wire Section | 0.75 mm² | 0.75 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >500 times | >500 times |
Upper Temperature | +95 °C | +95 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 250 (32) | 250 (32) |
Rated Impuls Voltage | 1500 V | 1500 V |
Pollution Degree | 1 (2)* | 1 (2)* |
Overvoltage Categorie | I (II)* | I (II)* |
Material Group | III | III |
Rated Current (40°) | 6 A | 6 A |
Max. Contact Resistance | 5 mΩ | 5 mΩ |
Material Of Contact | CuZn (Brass) | CuZn (Brass) |
Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
Material Of Housing | CuZn (Brass, nickel plated) | CuZn (Brass, nickel plated) |
Cable Outlet | 6-8 mm | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Article Number | 99 5613 15 05 | 99 5613 19 05 |
Connector Diameter | 18.5 mm | 18.5 mm |
Number Of Contacts | 5 contacts | 5 contacts |
Connector Locking System | Screw (M16) | Screw (M16) |
Termination | Solder | Solder |
Wire Section | 0.75 mm² | 0.75 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >500 times | >500 times |
Upper Temperature | +95 °C | +95 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 250 (32) | 250 (32) |
Rated Impuls Voltage | 1500 V | 1500 V |
Pollution Degree | 1 (2)* | 1 (2)* |
Overvoltage Categorie | I (II)* | I (II)* |
Material Group | III | III |
Rated Current (40°) | 6 A | 6 A |
Max. Contact Resistance | 5 mΩ | 5 mΩ |
Material Of Contact | CuZn (Brass) | CuZn (Brass) |
Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
Material Of Housing | CuZn (Brass, nickel plated) | CuZn (Brass, nickel plated) |
Cable Outlet | 6-8 mm | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Article Number | 99 5617 15 05 | 99 5617 19 05 |
Connector Diameter | 18.5 mm | 18.5 mm |
Number Of Contacts | 5 (Stereo) contacts | 5 (Stereo) contacts |
Connector Locking System | Screw (M16) | Screw (M16) |
Termination | Solder | Solder |
Wire Section | 0.75 mm² | 0.75 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >500 times | >500 times |
Upper Temperature | +95 °C | +95 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 60 (32) | 60 (32) |
Rated Impuls Voltage | 500 V | 500 V |
Pollution Degree | 1 (2)* | 1 (2)* |
Overvoltage Categorie | I (II)* | I (II)* |
Material Group | III | III |
Rated Current (40°) | 6 A | 6 A |
Max. Contact Resistance | 5 mΩ | 5 mΩ |
Material Of Contact | CuZn (Brass) | CuZn (Brass) |
Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
Material Of Housing | CuZn (Brass, nickel plated) | CuZn (Brass, nickel plated) |
Cable Outlet | 6-8 mm | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Article Number | 99 5621 15 06 | 99 5621 19 06 |
Connector Diameter | 18.5 mm | 18.5 mm |
Number Of Contacts | 6 DIN contacts | 6 DIN contacts |
Connector Locking System | Screw (M16) | Screw (M16) |
Termination | Solder | Solder |
Wire Section | 0.75 mm² | 0.75 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >500 times | >500 times |
Upper Temperature | +95 °C | +95 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 250 (32) | 250 (32) |
Rated Impuls Voltage | 1500 V | 1500 V |
Pollution Degree | 1 (2)* | 1 (2)* |
Overvoltage Categorie | I (II)* | I (II)* |
Material Group | III | III |
Rated Current (40°) | 5 A | 5 A |
Max. Contact Resistance | 5 mΩ | 5 mΩ |
Material Of Contact | CuZn (Brass) | CuZn (Brass) |
Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
Material Of Housing | CuZn (Brass, nickel plated) | CuZn (Brass, nickel plated) |
Cable Outlet | 6-8 mm | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Article Number | 99 5625 15 07 | 99 5625 19 07 |
Connector Diameter | 18.5 mm | 18.5 mm |
Number Of Contacts | 7 contacts | 7 contacts |
Connector Locking System | Screw (M16) | Screw (M16) |
Termination | Solder | Solder |
Wire Section | 0.75 mm² | 0.75 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >500 times | >500 times |
Upper Temperature | +95 °C | +95 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 125 (32) | 125 (32) |
Rated Impuls Voltage | 800 V | 800 V |
Pollution Degree | 1 (2)* | 1 (2)* |
Overvoltage Categorie | I (II)* | I (II)* |
Material Group | III | III |
Rated Current (40°) | 5 A | 5 A |
Max. Contact Resistance | 5 mΩ | 5 mΩ |
Material Of Contact | CuZn (Brass) | CuZn (Brass) |
Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
Material Of Housing | CuZn (Brass, nickel plated) | CuZn (Brass, nickel plated) |
Cable Outlet | 6-8 mm | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Article Number | 99 5681 15 07 |
Connector Diameter | 18.5 mm |
Number Of Contacts | 7 DIN contacts |
Connector Locking System | Screw (M16) |
Termination | Solder |
Wire Section | 0.75 mm² |
Protection Degree | IP67 |
Mating Cycles | >500 times |
Upper Temperature | +95 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 5 A |
Max. Contact Resistance | 5 mΩ |
Material Of Contact | CuZn (Brass) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | CuZn (Brass, nickel plated) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit |
Article Number | 99 5671 15 08 | 99 5671 19 08 |
Connector Diameter | 18.5 mm | 18.5 mm |
Number Of Contacts | 8 DIN contacts | 8 DIN contacts |
Connector Locking System | Screw (M16) | Screw (M16) |
Termination | Solder | Solder |
Wire Section | 0.75 mm² | 0.75 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >500 times | >500 times |
Upper Temperature | +95 °C | +95 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 60 (32) | 60 (32) |
Rated Impuls Voltage | 500 V | 500 V |
Pollution Degree | 1 (2)* | 1 (2)* |
Overvoltage Categorie | I (II)* | I (II)* |
Material Group | III | III |
Rated Current (40°) | 5 A | 5 A |
Max. Contact Resistance | 5 mΩ | 5 mΩ |
Material Of Contact | CuZn (Brass) | CuZn (Brass) |
Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
Material Of Housing | CuZn (Brass, nickel plated) | CuZn (Brass, nickel plated) |
Cable Outlet | 6-8 mm | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Article Number | 99 5629 15 12 |
Connector Diameter | 18.5 mm |
Number Of Contacts | 12 contacts |
Connector Locking System | Screw (M16) |
Termination | Solder |
Wire Section | 0.25 mm² |
Protection Degree | IP67 |
Mating Cycles | >500 times |
Upper Temperature | +95 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 3 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuZn (Brass) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | CuZn (Brass, nickel plated) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit |
Article Number | 99 5651 15 14 |
Connector Diameter | 18.5 mm |
Number Of Contacts | 14 contacts |
Connector Locking System | Screw (M16) |
Termination | Solder |
Wire Section | 0.25 mm² |
Protection Degree | IP67 |
Mating Cycles | >500 times |
Upper Temperature | +95 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 3 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuZn (Brass) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | CuZn (Brass, nickel plated) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit |
Article Number | 99 5455 15 16 |
Connector Diameter | 18.5 mm |
Number Of Contacts | 16 contacts |
Connector Locking System | Screw (M16) |
Termination | Solder |
Wire Section | 0.25 mm² |
Protection Degree | IP67 |
Mating Cycles | >500 times |
Upper Temperature | +95 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 3 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuZn (Brass) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | CuZn (Brass, nickel plated) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit |
Article Number | 99 5661 15 19 |
Connector Diameter | 18.5 mm |
Number Of Contacts | 19 contacts |
Connector Locking System | Screw (M16) |
Termination | Solder |
Wire Section | 0.25 mm² |
Protection Degree | IP67 |
Mating Cycles | >500 times |
Upper Temperature | +95 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 3 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuZn (Brass) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | CuZn (Brass, nickel plated) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit |
Article Number | 99 5695 15 24 |
Connector Diameter | 18.5 mm |
Number Of Contacts | 24 contacts |
Connector Locking System | Screw (M16) |
Termination | Solder |
Wire Section | 0.14 mm² |
Protection Degree | IP67 |
Mating Cycles | >500 times |
Upper Temperature | +95 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 1 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuZn (Brass) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | CuZn (Brass, nickel plated) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Fiche produit | Télécharger la fiche produit |
Les propriétés diffèrent selon les variantes et sous-variantes
