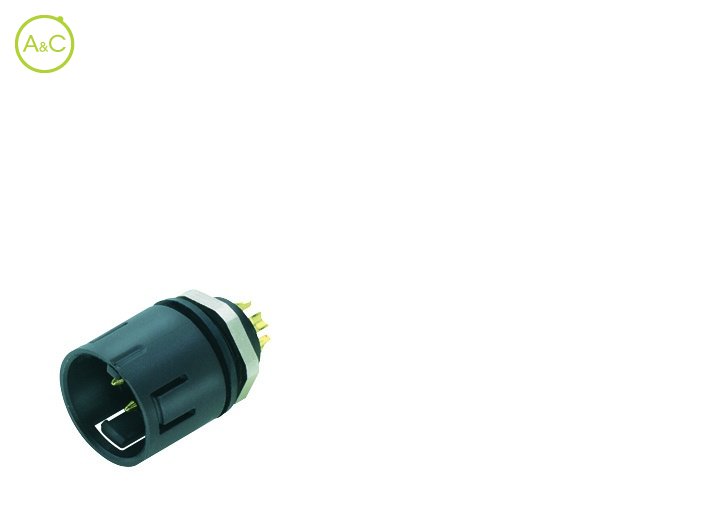

Male panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	99 9107 00 03

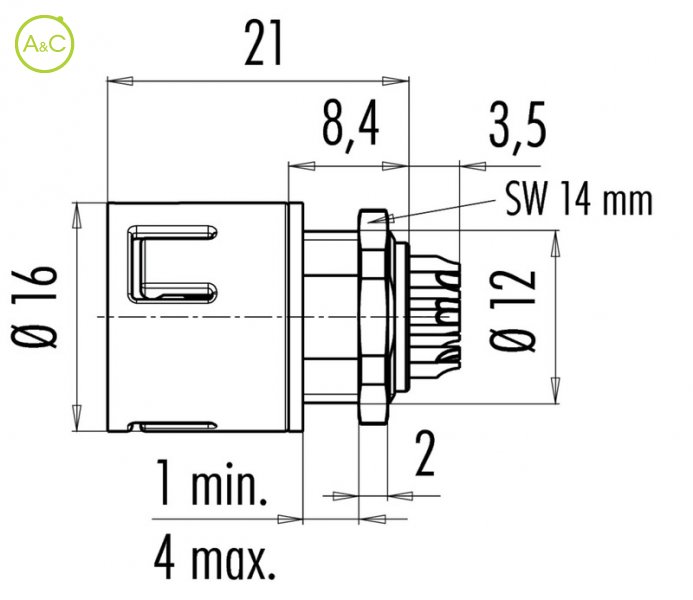

Connector Diameter	16 mm
Number Of Contacts	3 contacts
Connector Locking System	Snap-in
Termination	Solder
Wire Section	0.75 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	7 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	99 9115 00 05
Connector Diameter	16 mm
Number Of Contacts	5 contacts
Connector Locking System	Snap-in
Termination	Solder
Wire Section	0.75 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	99 9127 00 08
Connector Diameter	16 mm
Number Of Contacts	8 contacts
Connector Locking System	Snap-in
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	125
Rated Impuls Voltage	2500 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	99 9135 00 12
Connector Diameter	16 mm
Number Of Contacts	12 contacts
Connector Locking System	Snap-in
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
