Male Terminal AWG 22 to 18

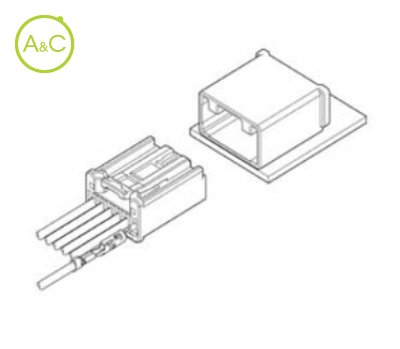

AIT-II CONNECTOR

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

JST

Applicable Wire

AWG 18
AWG 22 to 20

Article Number	SAITW-A02GF-064	SAITW-A02T-064
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)
Applicable Wire Size	0.75 to 0.85 (AWG #18) mm²	0.75 to 0.85 (AWG #18) mm²
Connection Type	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 A	5 A
Rated Voltage (ac/dc)	14 V	14 V
Remark*	Gold plated	Tin plated

Article Number	SAITW-A03GF-064	SAITW-A03T-064
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-40 °C	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)	2.54mm Pitch Disconnectable Crimp Style (Wire to Wire)
Applicable Wire Size	0.3 to 0.5 (AWG #22 to #20) mm²	0.3 to 0.5 (AWG #22 to #20) mm²
Connection Type	Automotive	Automotive
Pitch / Style	2.54 mm	2.54 mm
Rated Current (ac/dc)	5 A	5 A
Rated Voltage (ac/dc)	14 V	14 V
Remark*	Gold plated	Tin plated

Les propriétés diffèrent selon les variantes et sous-variantes

0.64 unsealed low-profile connector series for use in a wide range of automotive applications. Variations There are multiple varieties of AIT-II Connectors which can satisfy your needs. RoHS Compliant
