Base for AYU1 Connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
- General
| Article Number | AYU1-1P-02676-120 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | Low-profile compact coaxial Connector |
| Connection Type | Printed Circuit Board Connectors |
| Frequency Range | DC to 12 GHz |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Les propriétés diffèrent selon les variantes et sous-variantes

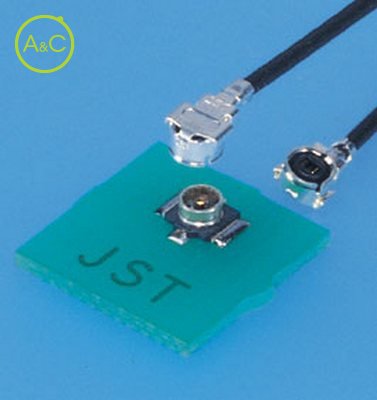

This is SMT type, space saving and co-axial connector, corresponding to notebook PC, thinner and lighter telecommunications apparatus, etc.
Application - UWB, WiMAX, Wireless LAN, Bluetooth, DSRC, Mobile Phones, PDA, GPS, Express, etc.
Space saving design
Responding to SMT, mounting space of 3mm (.118") x 3mm (.118"), low profile of 2mm (.079") mated height.
High performance of electrical feature
VSWR is 1.3 max. in the frequency band of 0.045MHz to 3GHz.
Embossed taping for automatic mounting
The connector is supplied in embossed tape packaging, for mounting by automatic placement machines.
RoHS Compliant
