Top Entry Shrouded Header THT Double Row

  • ZF/ZFW CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 18
  • 22
  • 26
  • 30
  • 34
  • 38
  • 40
Article Number B18B-ZFWKS-1
Number Of Contacts 18
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.5mm Pitch Disconnectable Insulation Displacement
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.50 mm
Rated Current (ac/dc) 0.7 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Through-hole Technology (THT)
Les propriétés diffèrent selon les variantes et sous-variantes

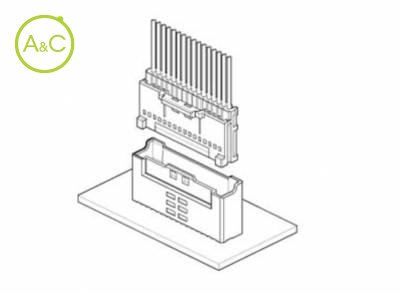

JST introduces the new ZF/ZFW connector series to their comprehensive range of Insulation Displacement Connectors. This THT 1.5mm pitch wire to board connector system offers an inexpensive and efficient solution to mass termination of 28AWG cable. The twin U-slot insulation displacement section eliminates the intensive task of pre-stripping wires. This RoHS compliant connector is available in 2 to 40 circuits with top and side entry configurations. The ZF/ZFW headers and sockets provide superior operability with low insertion force and strain relief. Twin U-slot insulation displacement section Superior operability (Low insertion force) Strain relief Secure locking structure RoHS Compliant
