Contact AWG 28 to 22
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
Number Of Poles
- AWG 28 to 22
Article Number | SBH-001T-P0.5 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 4.0/8.0/12.0mm Pitch Disconnectable Crimp Style |
Applicable Wire Size | 0.08 to 0.33 (AWG #28 to #22) mm² |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 4.0/8.0/12.0 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 600 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Les propriétés diffèrent selon les variantes et sous-variantes

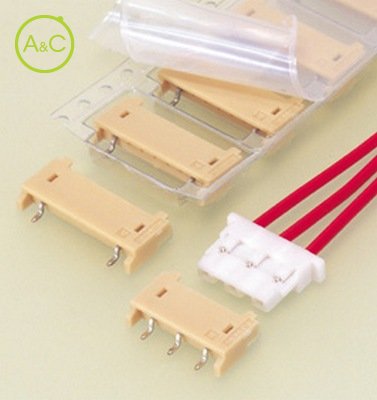

Low profile connectors with high withstanding voltage, designed for connecting liquid crystal display back light lamps to their starters. SMT configuration.
It's crimp style contact can be inserted into the housing with little force, thus making them suitable for use with flexible wires such as those insulated with silicone rubber.
Low profile
Allows liquid crystal displays to be thinner, with only 3.2mm (.126")
SMT configuration

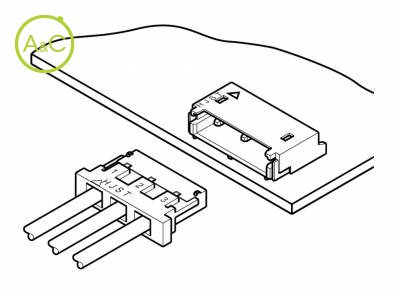

Shrouded headers are SMT style, suited for high density mounting. The headers feature reinforcing solder tabs to prevent lifting of the header during mating and unmating.
Application to special wires
Its crimp style contact can be inserted into the housing with little force, thus making them suitable for use with flexible wires such as those insulated with silicone rubber.
Headers with locating bosses
Headers with locating bosses are also available as an option.
Housing lock also serves as polarizing device
The housing lock, which is also designed to be a polarizing device, prevents both misinsertion and accidental disengagement due to vibration or shock.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
