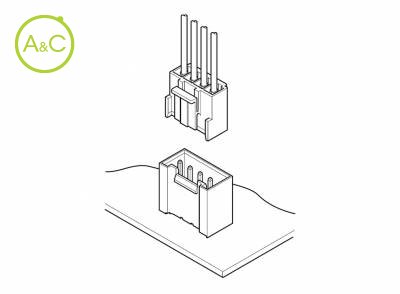

Top Entry Shrouded Header THT With Boss High box type
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
Number Of Poles
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
Article Number | BH1P-VH-1 |
Number Of Contacts | 1 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 3.96mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 3.96 mm |
Rated Current (ac/dc) | 7.0 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Remark* | Secure locking device |
Les propriétés diffèrent selon les variantes et sous-variantes
The header is tall and fully shrouded so as to prevent the resin used to coat the PCB coming into contact with the mating pins.
Designed for use specifically with resin coated ("potted") PC boards. The header is designed to accept VH mating receptacles.
The housing has a lock mechanism which prevents the connector from coming loose due to vibration. The mechanism also prevents misinsertion.

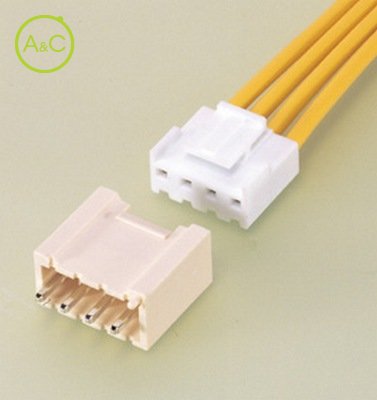

Header for 3.96mm (.156") pitch VH connector for use specifically with resin coated ("potted") PC boards
This header is tall and fully shrouded so as to prevent the resin used to coat the PC boards from coming into contact with the mating pins.
Interchangeability
Designed to accept VH mating receptacles.
Standards
UL Recognized E60389
CSA Certified LR20812
TUV Certified R75122
RoHS Compliant
