Receptacle Housing

BHM CONNECTOR

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

JST

Number Of Poles

Article Number	BHMR-02V
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	4mm/8mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	4.0/8.0 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	600 V

Article Number	BHMR-03V
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	4mm/8mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	4.0/8.0 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	600 V

Article Number	BHMR-04V
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	4mm/8mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	4.0/8.0 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	600 V

Article Number	BHMR-05V-R
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	4mm/8mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	4.0/8.0 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	600 V

Les propriétés diffèrent selon les variantes et sous-variantes

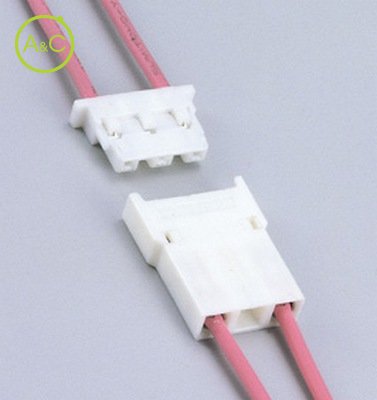

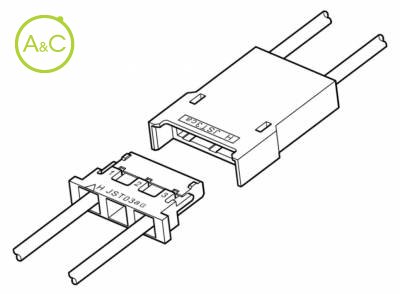

Wire-to-wire version connectors, designed for liquid crystal display back light lamps. Contact lances Contacts are secured in the housing by their spring action, thus fully shrouded. This helps improve the withstanding voltage. Box shaped housing Box shaped construction of the housing prevents distortion during mating and unmating of the housings. Withstanding voltage is also considered. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
