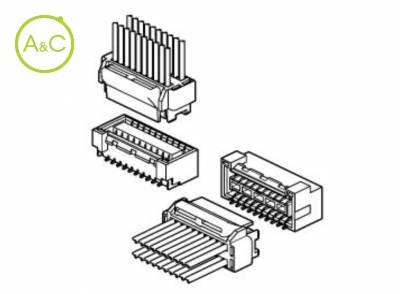

Top Entry Shrouded Header SMT
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 20
- 22
- 30
- 40
| Article Number | BM20B-GHDS-G-TF |
| Number Of Contacts | 20 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.25mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.25 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Les propriétés diffèrent selon les variantes et sous-variantes
To meet the requirement of the high density mounting PC board of flat panel TV, AV equipments etc., this connector is designed to the double-row type of 1.25mm pitch.
It's operability is very well, in spite of the small size.
Secure locking structure
Low insertion force
Prevention of contact deformation
Suction area for picking up
RoHS Compliant
