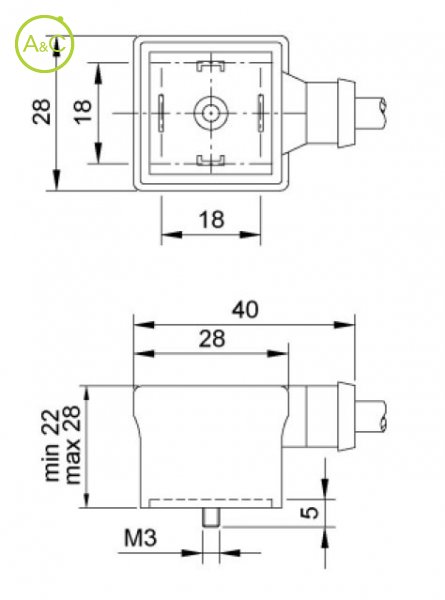

Style A square connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Shield
Housing Material
- PUR
- TPR
Article Number | CC11 20R3M 514 3000 0 | CC11 20R8M 514 3000 0 |
Protection Degree | IP65* | IP65* |
Upper Temperature | +70 °C | +70 °C |
Lower Temperature | -40 °C | -40 °C |
Contact Type | Fork | Fork |
Circuits | 2 Leds for switching over contacts, switching on 3 and 2 | 3 Leds for switching over contacts, switching on 3 and 2 |
Housing Oil Resistance | Occasional contact | Occasional contact |
Housing Hardness | 73 shore A | 73 shore A |
Other Characteristics | M3 central screw material: zinc plated iron | M3 central screw material: zinc plated iron |
Voltage Vdc | 10 to 50 | 10 to 50 |
Max. Currrent | 10 A @40°C | 10 A @40°C |
Housing Colour | Black | Black |
Remark* | The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward | The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward |
Les propriétés diffèrent selon les variantes et sous-variantes
