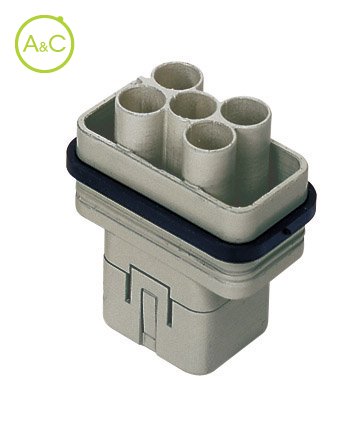

Inserts 4P+2P+PE , crimp connections

  • Male inserts for male contacts
Télécharger la fiche produit
  • General
Article Number CQM 04/2
Pollution Degree 3
Number Of Poles 4 + 2
Connection Type Crimp connection
Contact Type Male
Required Crimp Contacts CDMA 0.3, CDMA 0.5, CDMA 0.7, CDMA 1.0, CDMA 1.5, CDMA 2.5, CDMD 0.3, CDMD 0.5, CDMD 0.7, CDMD 1.0, CDMD 1.5, CDMD 2.5, CXMA 1.5, CXMA 2.5, CXMA 4.0, CXMA 6.0, CDM2D 0.3, CDM2D 0.5, CDM2D 0.7, CDM2D 1.0, CDM2D 1.5, CDM2D 2.5, CDMJD 0.3, CDMJD 0.5, CDMJD 0.7, CDMJD 1.0, CDMJD 1.5, CDMJD 2.5
Colour Grey
Extra Information Contact insert without contacts
With protective conductor
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Required Housing C-type size 32.13
EMC size 32.13
Diameter Male Contact 4 poles: 4 mm 2 poles: 1,6 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 4 poles: 40A 2 poles: 10 A
Nominal Rated Voltage 4 poles: 400/690V 2 poles: 250 V
Over Voltage Category III
Rated Surge Voltage 4 poles: 6 kV 2 poles: 4 kV
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CR 08 EMC
Conductive gasket for CQM male inserts
CR CPQ*
Plain coding pin for CDC, CQ,CQE,CCE,CMCE and MIXO 16A inserts
