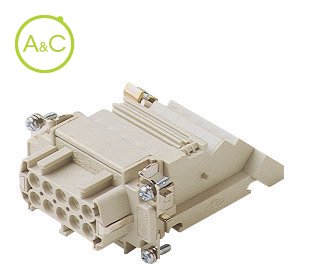

Terminal block inserts, 10P + PE, spring terminal connection

Avez-vous des questions sur ce produit?

Télécharger la fiche produit

Plus d’infos sur cette marque:

Article Number	CTSEF 10 L*
Pollution Degree	3
Number Of Poles	10
Connection Type	Spring clamp connection
Contact Type	Female
Remark*	Only for bulkhead mounted housing and BIG HOODS
Extra Information	Modular version With protective conductor With wire protection
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	125 °C
Min. Cross Section Without End Sleeve	0.75 mm²
Max. Cross Section Without End Sleeve	2.5 mm²
Required Housing	C-type size 57.27 C7 size 57.27 Simplex size 57.27 V-Type size 57.27 BIG size 57.27 T-type size 57.27 T-type/W size 57.27 T-type/H size 57.27 T-type/C size 57.27 W-Type size 57.27 EMC size 57.27 Central Lever size 57.27 LS-type size 57.27
Diameter Male Contact	2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94	V0
Material Insert	Thermoplastic
Material Contact	Brass
Plating Of Contact	Silver
Max. Rated Current	16 A
Nominal Rated Voltage	500 V
Over Voltage Category	III
Rated Surge Voltage	6 kV

Article Number	CTSEF 10 R*
Pollution Degree	3
Number Of Poles	10
Connection Type	Spring clamp connection
Contact Type	Female
Remark*	Only for bulkhead mounted housing and BIG HOODS
Extra Information	Modular version With protective conductor With wire protection
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	125 °C
Min. Cross Section Without End Sleeve	0.75 mm²
Max. Cross Section Without End Sleeve	2.5 mm²
Required Housing	C-type size 57.27 C7 size 57.27 Simplex size 57.27 V-Type size 57.27 BIG size 57.27 T-type size 57.27 T-type/W size 57.27 T-type/H size 57.27 T-type/C size 57.27 W-Type size 57.27 EMC size 57.27 Central Lever size 57.27 LS-type size 57.27
Diameter Male Contact	2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94	V0
Material Insert	Thermoplastic
Material Contact	Brass
Plating Of Contact	Silver
Max. Rated Current	16 A
Nominal Rated Voltage	500 V
Over Voltage Category	III
Rated Surge Voltage	6 kV
