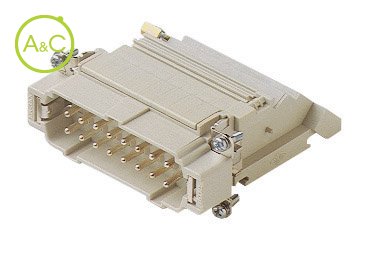

Terminal block inserts, 32P + PE, Spring terminal connection

Avez-vous des questions sur ce produit?

Télécharger la fiche produit

Plus d’infos sur cette marque:

Article Number	CTSEM 16 LN*	CTSEM 16 L*
Pollution Degree	3	3
Number Of Poles	32	32
Connection Type	Spring clamp connection	Spring clamp connection
Contact Type	Female	Female
Remark*	Only for bulkhead mounted housings and BIG hoods	Only for bulkhead mounted housings and BIG hoods
Extra Information	Modular version With protective conductor With wire protection	Modular version With protective conductor With wire protection
Ambient Lower Temperature	-40 °C	-40 °C
Ambient Upper Temperature	125 °C	125 °C
Pin Numbers	1-16	1-16
Min. Cross Section Without End Sleeve	0.75 mm²	0.75 mm²
Max. Cross Section Without End Sleeve	2.5 mm²	2.5 mm²
Required Housing	C-type size 77.62 W-type size 77.62	C-type size 77.62 W-type size 77.62
Diameter Male Contact	2.5 mm	2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94	V0	V0
Material Insert	Thermoplastic	Thermoplastic
Material Contact	Brass	Brass
Plating Of Contact	Silver	Silver
Max. Rated Current	16 A	16 A
Nominal Rated Voltage	500 V	500 V
Over Voltage Category	III	III
Rated Surge Voltage	6 kV	6 kV

Article Number	CTSEM 16 R*	CTSEM 16 RN*
Pollution Degree	3	3
Number Of Poles	32	32
Connection Type	Spring clamp connection	Spring clamp connection
Contact Type	Female	Female
Remark*	Only for bulkhead mounted housings and BIG hoods	Only for bulkhead mounted housings and BIG hoods
Extra Information	Modular version With protective conductor With wire protection	Modular version With protective conductor With wire protection
Ambient Lower Temperature	-40 °C	-40 °C
Ambient Upper Temperature	125 °C	125 °C
Pin Numbers	17-32	17-32
Min. Cross Section Without End Sleeve	0.75 mm²	0.75 mm²
Max. Cross Section Without End Sleeve	2.5 mm²	2.5 mm²
Required Housing	C-type size 77.62 W-type size 77.62	C-type size 77.62 W-type size 77.62
Diameter Male Contact	2.5 mm	2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94	V0	V0
Material Insert	Thermoplastic	Thermoplastic
Material Contact	Brass	Brass
Plating Of Contact	Silver	Silver
Max. Rated Current	16 A	16 A
Nominal Rated Voltage	500 V	500 V
Over Voltage Category	III	III
Rated Surge Voltage	6 kV	6 kV
