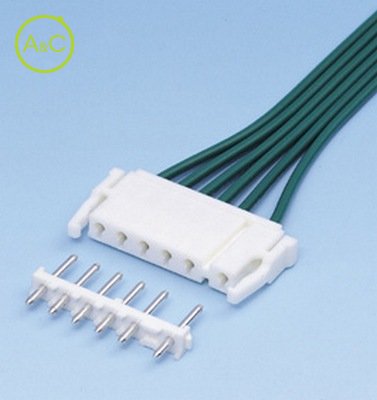

Housing for DV Connector

DV CONNECTOR

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

JST

Number Of Poles

Article Number	DVR-02V-S
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	DVR-03V-S
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	DVR-04V-S
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	DVR-05V-S
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	DVR-06V-S
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	5mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	5.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Les propriétés diffèrent selon les variantes et sous-variantes

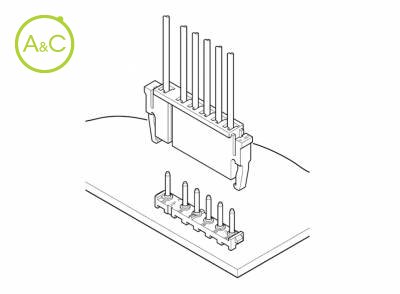

One position has a different pitch than the others. This provides the connector with polarization and prevents misinsertion. Two-point contact. Each contact has two wiping areas which ensure stable and reliable connection. Secure mounting The housing lock feature secures the connector with the header, ensuring that a stable connection is maintained during vibration. Twin-beam contacts Each contact has two wiping areas, ensuring a stable and reliable connection. Housing lances The lances on the resilient housing ensure each insertion and secure locking of the contact into housing. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
