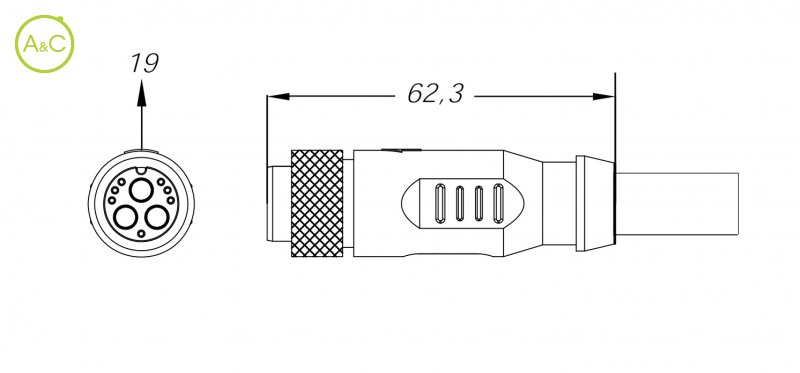

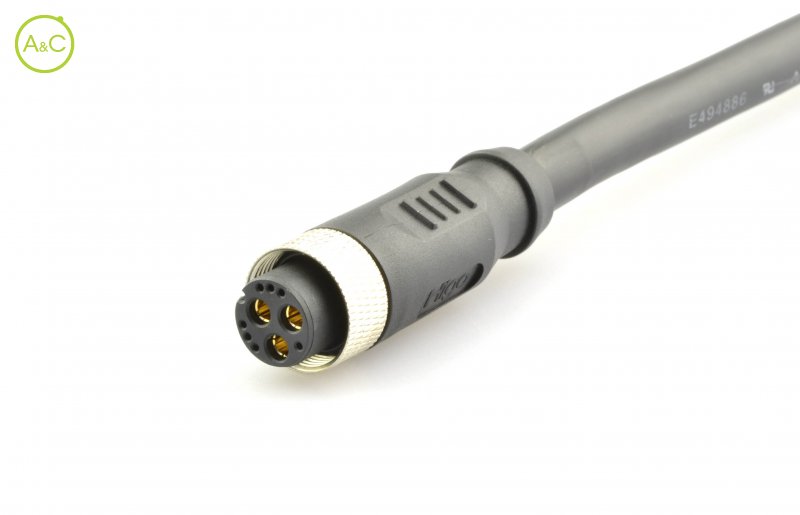

Female cable connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Higo
Higo
Number Of Poles
- 10 (3+7)
| Article Number | L1019DM P 00 BX 1000 |
| Color | Black |
| Connector Diameter | 19 mm |
| Wire Section | 3 x 5,3 + 7 x 0,14 mm² |
| Cable Length | 1000 mm |
| Protection Degree | IP67 |
| Mating Cycles | 200 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Phosphor Bronze |
| Cable Diameter | 11 mm |
| Insulation Wire | FEP |
| Remark * | *Rated current: 45A / 2A, 2 power pin loaded 40A / 2A, 3 power pin loaded Other cable length/type on request |
| Rated Current | *45 / 2 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Gold plated |
| Fitting Length | 114 mm |
| Material Jacket | PVC |
Les propriétés diffèrent selon les variantes et sous-variantes
