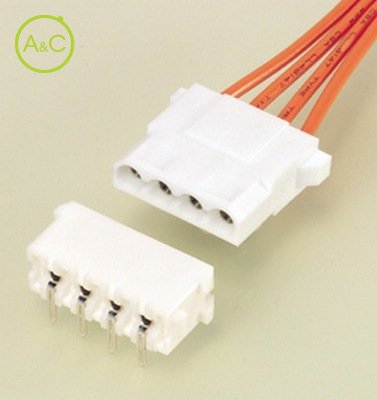

Side Entry Shrouded Header THT
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 4
| Article Number | LC-04A | LC-04B |
| Number Of Contacts | 4 | 4 |
| Upper Temperature | +90 °C | +90 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 5.08mm Pitch Disconnectable Crimp Style | 5.08mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 5.08 mm | 5.08 mm |
| Rated Current (ac/dc) | 7.0 A | 7.0 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark* | Shape A | Shape B |
Les propriétés diffèrent selon les variantes et sous-variantes
This reliable, low cost connector is suited for bringing power to printed circuit boards in office automation equipment.
A major application has been in secondary power supply circuits of floppy disk drives.
Anti-misinsertion feature
The plug and header are polarized, thus preventing misinsertion of the connector.

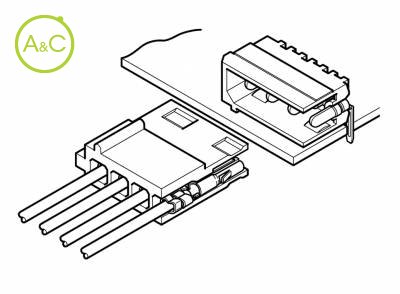

Self-locking housing clamp
The self-locking housing clamp for the header ensures easy handling and sturdy mounting.
Two kinds of headers
Types A and B headers are available to match the mounting direction of your printed circuit boards.
Two-wire crimp style contact
Two-wire crimp contacts which facilitate branch connections and internal jumpering are available.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
