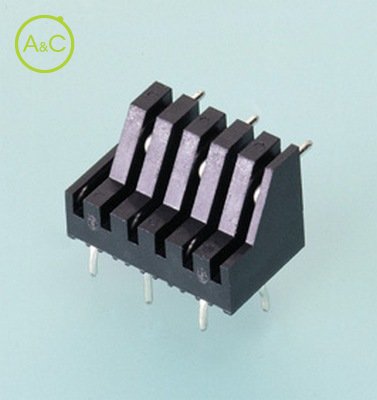

Header for MBS HEADER
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
Number Of Poles
- 6
- 8
Article Number | MBS06P-1T |
Number Of Contacts | 6 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Board-to-Board Connector |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Les propriétés diffèrent selon les variantes et sous-variantes

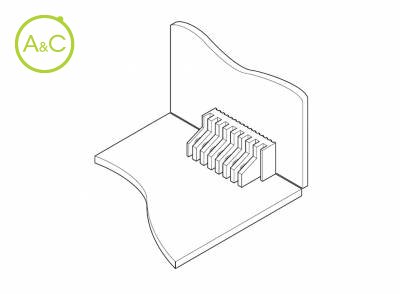

The MBS headers can be used to directly connect PC boards. The staggered pins improve the mechanical strength of the daughter card restraining system. The MBS header is supplied radial-taped for automatic mounting.
Tape specifications conform to JIS standards
The tape specifications for this header conform to JIS standards for radially lead components on tape (JIS C0805). The header can thus be loaded into most general-purpose radial lead component insertion machines.
Staggered pins
The 2.5mm (.098") pitch staggered pins increase the mechanical stability and strength of the connector's solder points. The MBS connector also features solder crack preventing materials.
Temporary board retention feature
The MBS header has a locking boss that allows it to be temporarily mounted on the printed circuit board. This prevents the header from lifting or changing position while it is being processed.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
