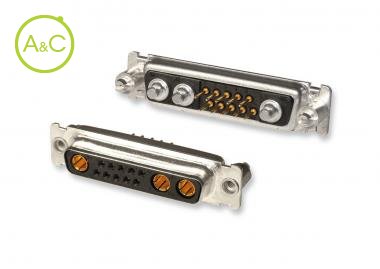

Mixed layout Dip solder 180°

Boardlock

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Provertha

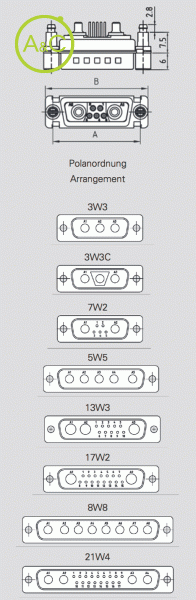

Contact Arrangement

3W3
3W3C
5W5
7W2
8W8
13W3
17W2
21W4

Les propriétés diffèrent selon les variantes et sous-variantes

Article Number	MDT3W3P2xG2B4	MT3W3S2xG2B4
Upper Temperature	High power contacts: +125 °C Coax contacts: +125 °C	High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature	High power contacts: -55 °C Coax contacts: -55 °C	High power contacts: -55 °C Coax contacts: -55 °C
Contact Plating	High power contacts: Au over Ni Coax contacts: Au over Ni	High power contacts: Au over Ni Coax contacts: Au over Ni
Housing Material	/	/
Contact Material	High power contacts: Cu-alloy Coax contacts: Cu-alloy	High power contacts: Cu-alloy Coax contacts: Cu-alloy
Remark*	For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3	For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3
Remark**	For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)	For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)
Remark ***	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4
Insulation Resistance	High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ	High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ
Thread Type	4= UNC 4-40 3 = M3	4= UNC 4-40 3 = M3
Current Rating	High power contacts: 10-40A Coax contacts: 2	High power contacts: 10-40A Coax contacts: 2
Contact Resistance	High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m	High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender	Male	Female
Insulator Material	/	/
Retaining Clip Material	High power contacts: CuBE Coax Contacts: CuBE	High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d)	High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)	High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d)	/	/
Air And Creepage Distance	High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm	High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm
Test Voltage U Eff	High power contacts: 1000 V Coax contacts: 1000	High power contacts: 1000 V Coax contacts: 1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles
Special Contact Version**	0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A	0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A

Article Number	MDT3W3CP2xG2B4	MT3W3CS2xG2B4
Upper Temperature	High power contacts: +125 °C Coax contacts: +125 °C	High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature	High power contacts: -55 °C Coax contacts: -55 °C	High power contacts: -55 °C Coax contacts: -55 °C
Contact Plating	High power contacts: Au over Ni Coax contacts: Au over Ni	High power contacts: Au over Ni Coax contacts: Au over Ni
Housing Material	/	/
Contact Material	High power contacts: Cu-alloy Coax contacts: Cu-alloy	High power contacts: Cu-alloy Coax contacts: Cu-alloy
Remark*	For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3	For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3
Remark**	For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)	For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)
Remark ***	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4
Insulation Resistance	High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ	High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ
Thread Type	4= UNC 4-40 3 = M3	4= UNC 4-40 3 = M3
Current Rating	High power contacts: 10-40A Coax contacts: 2	High power contacts: 10-40A Coax contacts: 2
Contact Resistance	High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m	High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender	Male	Female
Insulator Material	/	/
Retaining Clip Material	High power contacts: CuBE Coax Contacts: CuBE	High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d)	High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)	High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d)	/	/
Air And Creepage Distance	High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm	High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm
Test Voltage U Eff	High power contacts: 1000 V Coax contacts: 1000	High power contacts: 1000 V Coax contacts: 1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles
Special Contact Version**	0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A	0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A

Article Number	MDT5W5P2xG2B4	MT5W5S2xG2B4
Upper Temperature	High power contacts: +125 °C Coax contacts: +125 °C	High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature	High power contacts: -55 °C Coax contacts: -55 °C	High power contacts: -55 °C Coax contacts: -55 °C
Contact Plating	High power contacts: Au over Ni Coax contacts: Au over Ni	High power contacts: Au over Ni Coax contacts: Au over Ni
Housing Material	/	/
Contact Material	High power contacts: Cu-alloy Coax contacts: Cu-alloy	High power contacts: Cu-alloy Coax contacts: Cu-alloy
Remark*	For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3	For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3
Remark**	For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)	For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)
Remark ***	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4
Insulation Resistance	High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ	High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ
Thread Type	4= UNC 4-40 3 = M3	4= UNC 4-40 3 = M3
Current Rating	High power contacts: 10-40A Coax contacts: 2	High power contacts: 10-40A Coax contacts: 2
Contact Resistance	High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m	High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender	Male	Female
Insulator Material	/	/
Retaining Clip Material	High power contacts: CuBE Coax Contacts: CuBE	High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d)	High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)	High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d)	/	/
Air And Creepage Distance	High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm	High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm
Test Voltage U Eff	High power contacts: 1000 V Coax contacts: 1000	High power contacts: 1000 V Coax contacts: 1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles
Special Contact Version**	0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A	0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A

Article Number	MDT7W2P2xG2B4	MT7W2S2xG2B4
Upper Temperature	Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C	Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature	Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C	Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C
Contact Plating	Signal contacts: - Mating area: Au over Ni - Termination area: Sn over Ni High power contacts: Au over Ni Coax contacts: Au over Ni	Signal contacts: - Mating area: Au over Ni - Termination area: Sn over Ni High power contacts: Au over Ni Coax contacts: Au over Ni
Housing Material	Signal contacts: St. tinned	Signal contacts: St. tinned
Contact Material	Signal contacts: CU-Alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy	Signal contacts: CU-Alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy
Remark*	For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3	For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3
Remark**	For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)	For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)
Remark ***	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4
Insulation Resistance	Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ	Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ
Thread Type	4= UNC 4-40 3 = M3	4= UNC 4-40 3 = M3
Current Rating	Signal contacts: 5A High power contacts: 10-40A Coax contacts: 2	Signal contacts: 5A High power contacts: 10-40A Coax contacts: 2
Contact Resistance	Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m	Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender	Male	Female
Insulator Material	Signal contacts: PBT GF UL 94-V0	Signal contacts: PBT GF UL 94-V0
Retaining Clip Material	High power contacts: CuBE Coax Contacts: CuBE	High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d)	Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)	Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d)	Signal contacts: ≤ 50	Signal contacts: ≤ 50
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d)	Signal contacts: ≤ 83	Signal contacts: ≤ 83
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d)	Signal contacts: ≤ 123	Signal contacts: ≤ 123
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d)	Signal contacts: ≤ 167	Signal contacts: ≤ 167
Air And Creepage Distance	Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm	Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm
Test Voltage U Eff	Signal contacts: - Contact-Contact: 1000 V - Contact-Ground: 1200 V High power contacts: 1000 V Coax contacts: 1000	Signal contacts: - Contact-Contact: 1000 V - Contact-Ground: 1200 V High power contacts: 1000 V Coax contacts: 1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles
Special Contact Version**	0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A	0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A

Article Number	MDT8W8P2xG2B4	MT8W8S2xG2B4
Upper Temperature	High power contacts: +125 °C Coax contacts: +125 °C	High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature	High power contacts: -55 °C Coax contacts: -55 °C	High power contacts: -55 °C Coax contacts: -55 °C
Contact Plating	High power contacts: Au over Ni Coax contacts: Au over Ni	High power contacts: Au over Ni Coax contacts: Au over Ni
Housing Material	/	/
Contact Material	High power contacts: Cu-alloy Coax contacts: Cu-alloy	High power contacts: Cu-alloy Coax contacts: Cu-alloy
Remark*	For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3	For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3
Remark**	For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)	For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)
Remark ***	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4
Insulation Resistance	High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ	High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ
Thread Type	4= UNC 4-40 3 = M3	4= UNC 4-40 3 = M3
Current Rating	High power contacts: 10-40A Coax contacts: 2	High power contacts: 10-40A Coax contacts: 2
Contact Resistance	High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m	High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender	Male	Female
Insulator Material	/	/
Retaining Clip Material	High power contacts: CuBE Coax Contacts: CuBE	High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d)	High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)	High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d)	/	/
Air And Creepage Distance	High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm	High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm
Test Voltage U Eff	High power contacts: 1000 V Coax contacts: 1000	High power contacts: 1000 V Coax contacts: 1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles
Special Contact Version**	0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A	0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A

Article Number	MDT13W3P2xG2B4	MT13W3S2xG2B4
Upper Temperature	Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C	Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature	Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C	Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C
Contact Plating	Signal contacts: - Mating area: Au over Ni - Termination area: Sn over Ni High power contacts: Au over Ni Coax contacts: Au over Ni	Signal contacts: - Mating area: Au over Ni - Termination area: Sn over Ni High power contacts: Au over Ni Coax contacts: Au over Ni
Housing Material	Signal contacts: St. tinned	Signal contacts: St. tinned
Contact Material	Signal contacts: CU-Alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy	Signal contacts: CU-Alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy
Remark*	For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3	For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3
Remark**	For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)	For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)
Remark ***	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4
Insulation Resistance	Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ	Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ
Thread Type	4= UNC 4-40 3 = M3	4= UNC 4-40 3 = M3
Current Rating	Signal contacts: 5A High power contacts: 10-40A Coax contacts: 2	Signal contacts: 5A High power contacts: 10-40A Coax contacts: 2
Contact Resistance	Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m	Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender	Male	Female
Insulator Material	Signal contacts: PBT GF UL 94-V0	Signal contacts: PBT GF UL 94-V0
Retaining Clip Material	High power contacts: CuBE Coax Contacts: CuBE	High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d)	Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)	Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d)	Signal contacts: ≤ 50	Signal contacts: ≤ 50
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d)	Signal contacts: ≤ 83	Signal contacts: ≤ 83
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d)	Signal contacts: ≤ 123	Signal contacts: ≤ 123
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d)	Signal contacts: ≤ 167	Signal contacts: ≤ 167
Air And Creepage Distance	Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm	Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm
Test Voltage U Eff	Signal contacts: - Contact-Contact: 1000 V - Contact-Ground: 1200 V High power contacts: 1000 V Coax contacts: 1000	Signal contacts: - Contact-Contact: 1000 V - Contact-Ground: 1200 V High power contacts: 1000 V Coax contacts: 1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles
Special Contact Version**	0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A	0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A

Article Number	MDT17W2P2xG2B4	MT17W2S2xG2B4
Upper Temperature	Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C	Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature	Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C	Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C
Contact Plating	Signal contacts: - Mating area: Au over Ni - Termination area: Sn over Ni High power contacts: Au over Ni Coax contacts: Au over Ni	Signal contacts: - Mating area: Au over Ni - Termination area: Sn over Ni High power contacts: Au over Ni Coax contacts: Au over Ni
Housing Material	Signal contacts: St. tinned	Signal contacts: St. tinned
Contact Material	Signal contacts: CU-Alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy	Signal contacts: CU-Alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy
Remark*	For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3	For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3
Remark**	For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)	For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)
Remark ***	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4
Insulation Resistance	Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ	Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ
Thread Type	4= UNC 4-40 3 = M3	4= UNC 4-40 3 = M3
Current Rating	Signal contacts: 5A High power contacts: 10-40A Coax contacts: 2	Signal contacts: 5A High power contacts: 10-40A Coax contacts: 2
Contact Resistance	Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m	Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender	Male	Female
Insulator Material	Signal contacts: PBT GF UL 94-V0	Signal contacts: PBT GF UL 94-V0
Retaining Clip Material	High power contacts: CuBE Coax Contacts: CuBE	High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d)	Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)	Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d)	Signal contacts: ≤ 50	Signal contacts: ≤ 50
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d)	Signal contacts: ≤ 83	Signal contacts: ≤ 83
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d)	Signal contacts: ≤ 123	Signal contacts: ≤ 123
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d)	Signal contacts: ≤ 167	Signal contacts: ≤ 167
Air And Creepage Distance	Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm	Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm
Test Voltage U Eff	Signal contacts: - Contact-Contact: 1000 V - Contact-Ground: 1200 V High power contacts: 1000 V Coax contacts: 1000	Signal contacts: - Contact-Contact: 1000 V - Contact-Ground: 1200 V High power contacts: 1000 V Coax contacts: 1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles
Special Contact Version**	0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A	0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A

Article Number	MDT21W4P2xG2B4	MT21W4S2xG2B4
Upper Temperature	Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C	Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature	Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C	Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C
Contact Plating	Signal contacts: - Mating area: Au over Ni - Termination area: Sn over Ni High power contacts: Au over Ni Coax contacts: Au over Ni	Signal contacts: - Mating area: Au over Ni - Termination area: Sn over Ni High power contacts: Au over Ni Coax contacts: Au over Ni
Housing Material	Signal contacts: St. tinned	Signal contacts: St. tinned
Contact Material	Signal contacts: CU-Alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy	Signal contacts: CU-Alloy High power contacts: Cu-alloy Coax contacts: Cu-alloy
Remark*	For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3	For the requested quality class please replace the "G2" (standard) at the end of the article no. By using G1,G2,G3
Remark**	For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)	For the requested special contacts please replace the x in the article number with the desired special contacts version (0,1,2,3,4)
Remark ***	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4
Insulation Resistance	Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ	Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ
Thread Type	4= UNC 4-40 3 = M3	4= UNC 4-40 3 = M3
Current Rating	Signal contacts: 5A High power contacts: 10-40A Coax contacts: 2	Signal contacts: 5A High power contacts: 10-40A Coax contacts: 2
Contact Resistance	Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m	Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender	Male	Female
Insulator Material	Signal contacts: PBT GF UL 94-V0	Signal contacts: PBT GF UL 94-V0
Retaining Clip Material	High power contacts: CuBE Coax Contacts: CuBE	High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d)	Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)	Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d)	Signal contacts: ≤ 50	Signal contacts: ≤ 50
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d)	Signal contacts: ≤ 83	Signal contacts: ≤ 83
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d)	Signal contacts: ≤ 123	Signal contacts: ≤ 123
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d)	Signal contacts: ≤ 167	Signal contacts: ≤ 167
Air And Creepage Distance	Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm	Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm
Test Voltage U Eff	Signal contacts: - Contact-Contact: 1000 V - Contact-Ground: 1200 V High power contacts: 1000 V Coax contacts: 1000	Signal contacts: - Contact-Contact: 1000 V - Contact-Ground: 1200 V High power contacts: 1000 V Coax contacts: 1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles
Special Contact Version**	0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A	0: no special contacts 1: High Power 10 A 2: High Power 20 A 3: High Power 30 A 4: High Power 40 A
