T&P Connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 24
| Article Number | P28B-J23DK-GGNR |
| Number Of Contacts | 24 |
| Upper Temperature | +105 °C |
| Lower Temperature | -55 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Factory Automation Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 4.6 A |
| Rated Voltage (ac/dc) | 250 V |
Les propriétés diffèrent selon les variantes et sous-variantes

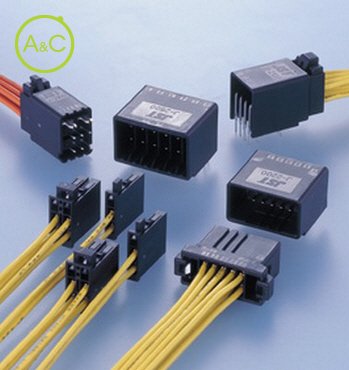

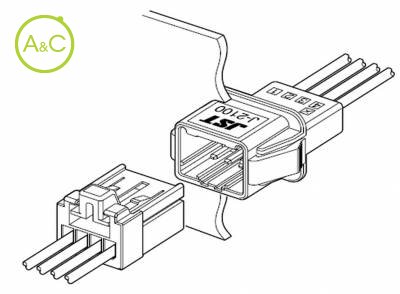

2.5mm (.098") pitch double-row connector for miniaturization of electronic equipment.
Receptacle contacts are designed to be common with all JFA connector J2000 series.
Double-spring construction
Double-spring construction realizes stable contact performance. In addition, the length of contact is shortened to miniaturize connector.
Housing lance
Housing lance assures stable assembly and smooth insertion even in thin wire.
Clear "click feeling"
Clear feeling of click when mating connector can be realized, secure engagement.
Standards
UL Recognized E60389
RoHS Compliant
