Revenir à la liste des produits
Télécharger la fiche produit

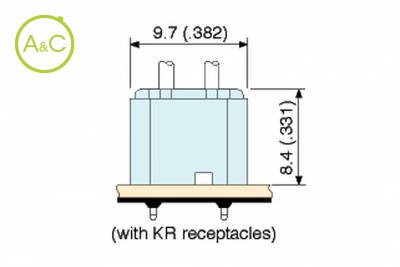

Housing 2 to 16 contacts
- PHN CONNECTOR
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
| Article Number | PHNR-02-H | PHNR-02C-H |
| Number Of Contacts | 2 | 2 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 100 V | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | normal type | reverse type |
| Article Number | PHNR-03-H | PHNR-03C-H |
| Number Of Contacts | 3 | 3 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 100 V | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | normal type | reverse type |
| Article Number | PHNR-04-H | PHNR-04C-H |
| Number Of Contacts | 4 | 4 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 100 V | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | normal type | reverse type |
| Article Number | PHNR-05-H | PHNR-05C-H |
| Number Of Contacts | 5 | 5 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 100 V | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | normal type | reverse type |
| Article Number | PHNR-06-H | PHNR-06C-H |
| Number Of Contacts | 6 | 6 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 100 V | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | normal type | reverse type |
| Article Number | PHNR-07-H | PHNR-07C-H |
| Number Of Contacts | 7 | 7 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 100 V | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | normal type | reverse type |
| Article Number | PHNR-08-H | PHNR-08C-H |
| Number Of Contacts | 8 | 8 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 100 V | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | normal type | reverse type |
| Article Number | PHNR-09-H | PHNR-09C-H |
| Number Of Contacts | 9 | 9 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 100 V | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | normal type | reverse type |
| Article Number | PHNR-10-H | PHNR-10C-H |
| Number Of Contacts | 10 | 10 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 100 V | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | normal type | reverse type |
| Article Number | PHNR-11-H | PHNR-11C-H |
| Number Of Contacts | 11 | 11 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 100 V | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | normal type | reverse type |
| Article Number | PHNR-12-H | PHNR-12C-H |
| Number Of Contacts | 12 | 12 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 100 V | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | normal type | reverse type |
| Article Number | PHNR-13-H | PHNR-13C-H |
| Number Of Contacts | 13 | 13 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 100 V | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | normal type | reverse type |
| Article Number | PHNR-14-H | PHNR-14C-H |
| Number Of Contacts | 14 | 14 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 100 V | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | normal type | reverse type |
| Article Number | PHNR-15-H | PHNR-15C-H |
| Number Of Contacts | 15 | 15 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 100 V | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | normal type | reverse type |
| Article Number | PHNR-16-H | PHNR-16C-H |
| Number Of Contacts | 16 | 16 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 2.00 mm | 2.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 100 V | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | normal type | reverse type |
Les propriétés diffèrent selon les variantes et sous-variantes
Based upon JST's field proven KR series connectors, the KR series family of connectors have been expanded to meet the requirements of high density packaging.
The KRW connector allows double-row wire-to-board connection using either the KR or PHN connectors. Whilst the TR connector allows wire-to-wire connection, also using either the KR or PHN connectors.
Multi IDC harnesses are possible
Various types of connectors
In addition to the KRW, KR, PHN and TR connectors, there are other 2.0mm (.079 inches) pitch connectors available such as the KRD, CR, DA, DD and DS ranges.
Cost reduction
By introducing the KR family series, a reduction in harness production time can be achieved through rationalization/standardization. This in turn, will therefore reduce harness costs, thus benefiting both the harness-maker and the set-maker alike.
Two types of circuit layouts
The connector is available in either the normal or reverse configurations. (Circuit number layouts are different from each other.)
Standards
UL Recognized E60389
CSA Certified LR20812
TUV Certified R75087: PH, PHN connectors
TUV Certified R75088: KR connector
TUV Certified R9851222: KRW connector
TUV Certified R9851223: TR connector
EC directive 2002/95/EC (the RoHS Directive) - Compliant
