Contact AWG 26 to 22
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Applicable Wire
- AWG 26 to 22
| Article Number | RA-SC1290 |
| Upper Temperature | +85 °C |
| Lower Temperature | -55 °C |
| General Description | 2.54mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 0.13 to 0.33 (AWG #26 to #22) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 300 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Les propriétés diffèrent selon les variantes et sous-variantes

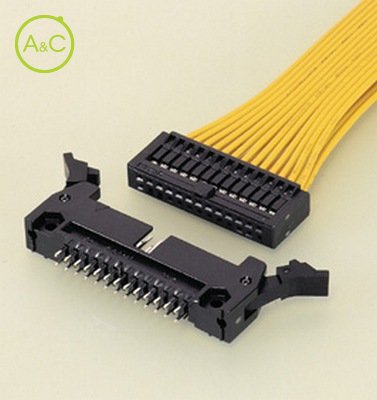

Crimp style receptacles that are designed to mate with headers conforming to MIL-C-83503.

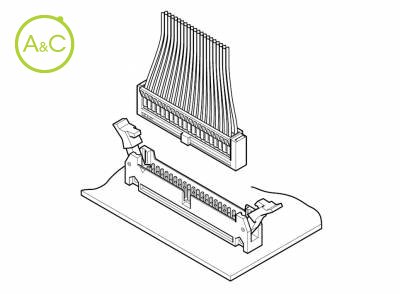

The locking levers are engaged by inserting the receptacle into the header.
The guide devices of both housing and header prevent reverse connector insertion.
Secure locking mechanism (RA, RX headers)
The locking levers are engaged by inserting the receptacle into the header. This ensures a firm connection that is highly resistant to impact and vibration.
Housing lances
The contact retention lances on the resilient housing allow visual confirmation of contact lock-in for easy and secure insertion.
Low insertion force contact
The low insertion force contacts reduce surface finish wear and reduce the effects of stress relaxation.
Anti-misinsertion feature
The guide devices of both housing and header prevent reverse connector insertion.
Standards
UL Recognized E60389
RoHS Compliant
