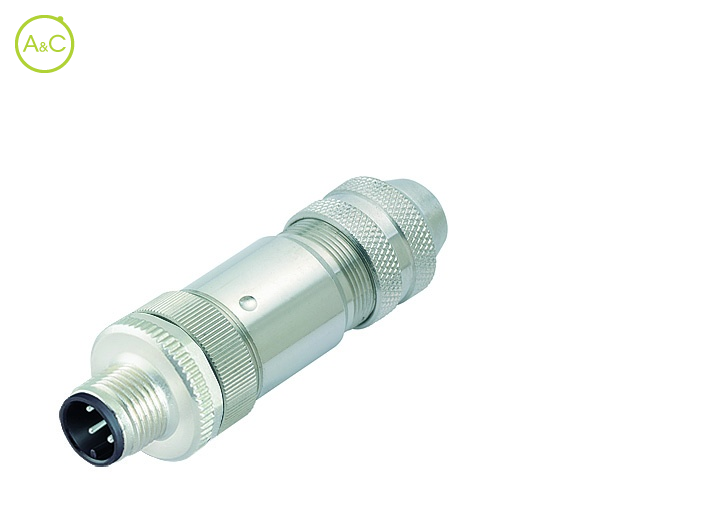

Male round connector

Whole nickel plated metal body

RDJ - RDJM 30410 090

RDJ - RDJM 30410 090

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Number Of Poles

4
5

Article Number	RDJM 30410 090
Number Of Contacts	4
Protection Degree	IP67*
Upper Temperature	+90 °C
Lower Temperature	-25 °C
Cable Diameter	6-8 mm
Fixing Thread	M12
Housing Material	Metal nickel plated
Housing Oil Resistance	Very good
Contact Material	Optalloy
Max. Wire Section	0,5 mm²
Locking Nut Material	Metal nickel plated
Voltage Vdc	1 to 250
Voltage Vac	1 to 250
Max. Currrent	4 A @40°C
Contact Gender	M
Coding	A
Cabling System	Screw vite
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDJM 30510 090
Number Of Contacts	5
Protection Degree	IP67*
Upper Temperature	+90 °C
Lower Temperature	-25 °C
Cable Diameter	6-8 mm
Fixing Thread	M12
Housing Material	Metal nickel plated
Housing Oil Resistance	Very good
Contact Material	Optalloy
Max. Wire Section	0,5 mm²
Locking Nut Material	Metal nickel plated
Voltage Vdc	1 to 125
Voltage Vac	1 to 125
Max. Currrent	4 A @40°C
Contact Gender	M
Coding	A
Cabling System	Screw vite
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Les propriétés diffèrent selon les variantes et sous-variantes
