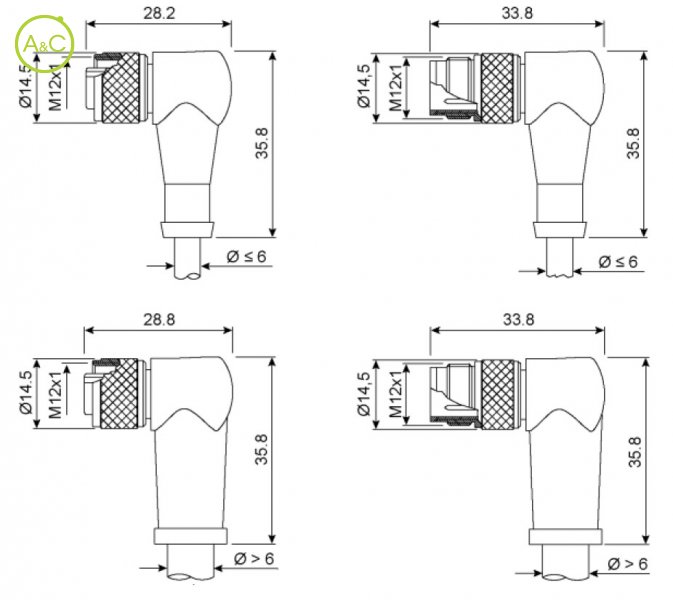

Female round connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Shield
Shield
Number Of Poles
- 4
| Article Number | RDMF 06100 302 3000 | RDMF 06400 302 3000 |
| Number Of Contacts | 4 | 4 |
| Protection Degree | IP65* | IP65* |
| Upper Temperature | +70 °C | +70 °C |
| Lower Temperature | -40 °C | -40 °C |
| Housing Material | TPU | TPU |
| Circuits | PNP | PNP |
| Housing Oil Resistance | Very good | Very good |
| Contact Material | Golden over nickel plated CuZn | Golden over nickel plated CuZn |
| Locking Nut Material | Brass nickel plated | Brass nickel plated |
| Voltage Vdc | 1 to 30 | 1 to 30 |
| Max. Currrent | 4 A @40°C | 4 A @40°C |
| Housing Colour | Transparent | Transparent |
| Contact Gender | F | F |
| Ground Pole | No | No |
| Max. Number Wires | 4 | 4 |
| Wire Colour | bn1, wh2, bu3, bk4 | bn1, wh2, bu3, bk4 |
| Coding | A | A |
| Remark* | The protection degree level is guaranteed only when correctly assembled with Shield's couterpart | The protection degree level is guaranteed only when correctly assembled with Shield's couterpart |
Les propriétés diffèrent selon les variantes et sous-variantes
