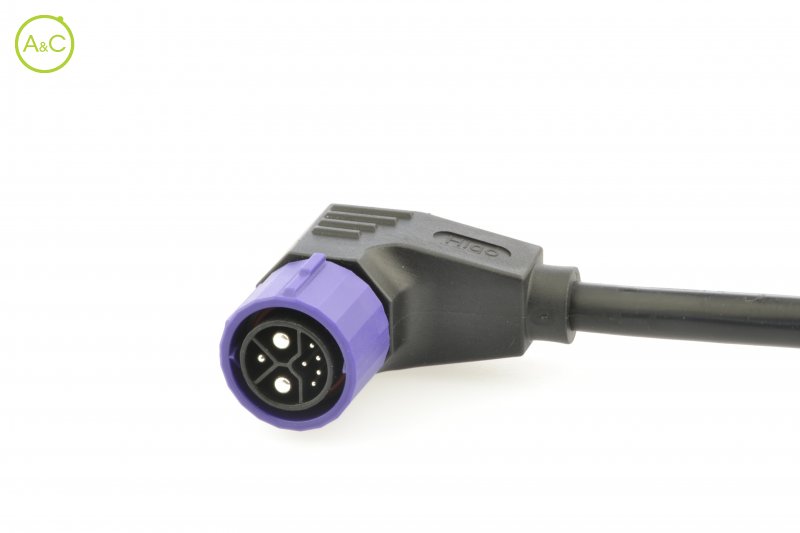

Male angled plug connector

  • Charging & discharging in 1, self-locking

Number Of Poles

  • 8 (2+1+5)
Article Number S828BG A 00 CD 1000
Color Black/Purple

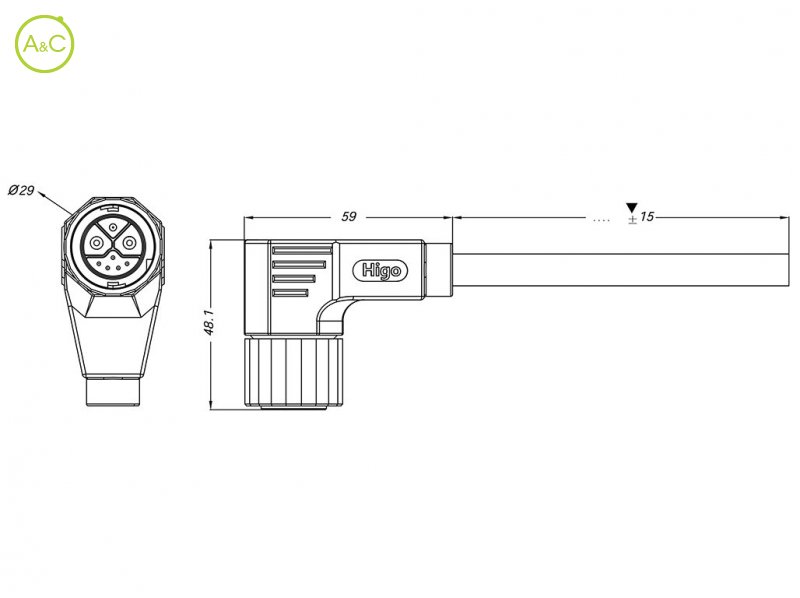

Connector Diameter 28 mm
Wire Section 2 x 10AWG+ 1 x 18AWG + 5 x 22AWG mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper alloy
Cable Diameter 10 mm
Insulation Wire Teflon
Remark * Other cable length/type on request
Rated Current 50 / 15 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Silver plated
Fitting Length 50 mm
Material Jacket PVC
Les propriétés diffèrent selon les variantes et sous-variantes
