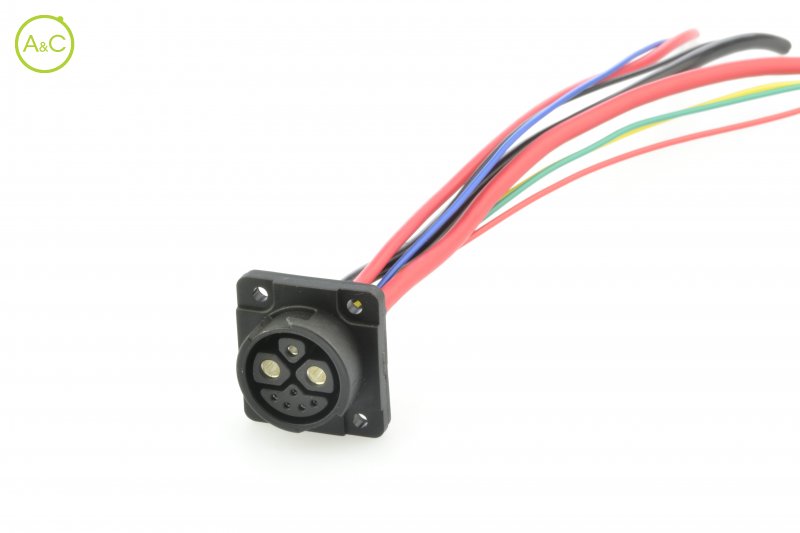

Female panel mount connector

  • Charging & discharging in 1, self-locking

Number Of Poles

  • 8 (2+1+5)
Article Number S828BM C 00 GM 0300
Color Black/Purple

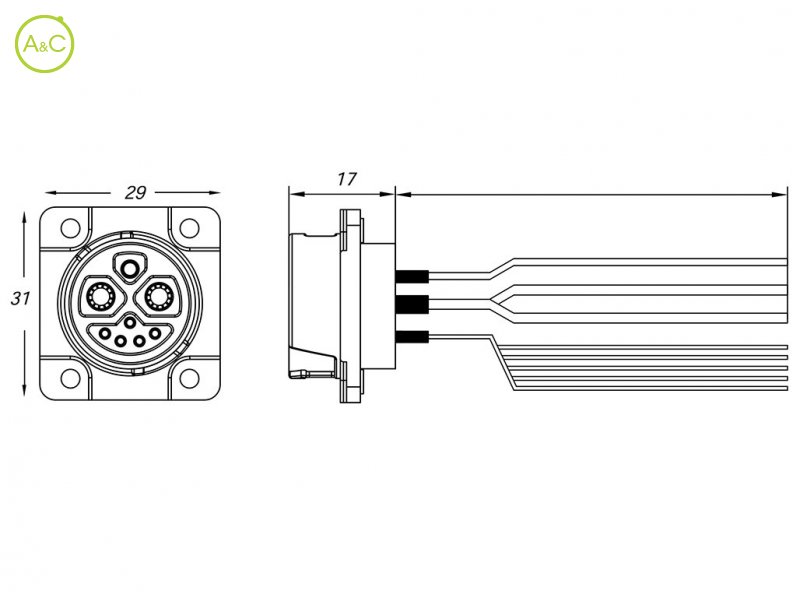

Connector Diameter 29,0 x 31,0 mm
Wire Section 2 x 4,0 + 1 x 0,82 + 5 x 0,2 mm²
Cable Length 300 mm
Protection Degree IP67
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor Bronze
Insulation Wire PVC
Remark * Other cable length/type on request
Rated Current 50 / 15 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Silver plated
Les propriétés diffèrent selon les variantes et sous-variantes
