Socket Contact
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Applicable Wire
- AWG 28 to 24
| Article Number | SBHT-002T-P0.5 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 5.1mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Applicable Wire Size | 0.08 to 0.22 (AWG 28 to 24) mm² |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 5.10 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 1,5 V |
Les propriétés diffèrent selon les variantes et sous-variantes

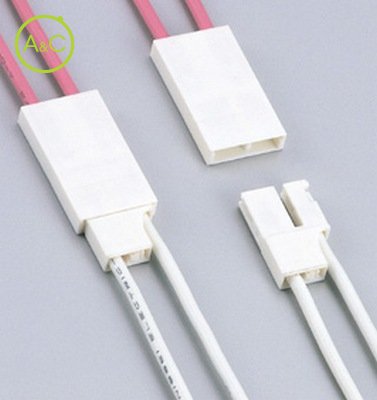

Connector for liquid crystal display back light lamps.
High voltage
With enough creep distance at the high voltage side, voltage rating can be as high as 1,500V.

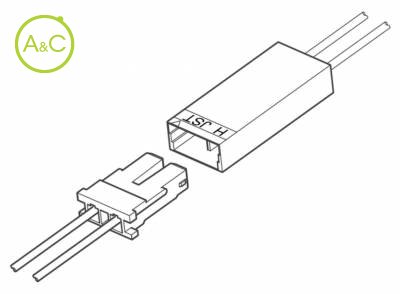

Applicable either to wire-to-wire connection or board-to-wire connection
Socket housing is commonly used for wire-to-wire version and for board-to-wire version BHT series. Pin contact is the same as that for the wire-to-wire BHS connector.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
