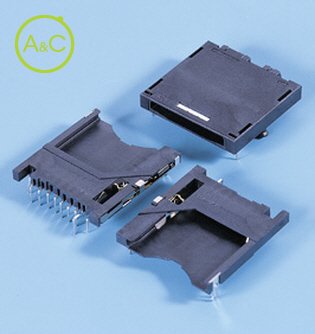

Connector for SD Memory Card and Multi Media Card
1.jpg)
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 9
| Article Number | SD-C-9BND-P23-332 |
| Number Of Contacts | 9 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | SD Card Connector (Through hole Type) |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 5 V |
| Standard | SD |
| Pcb Mount Style | Through-hole Technology (THT) |
Les propriétés diffèrent selon les variantes et sous-variantes

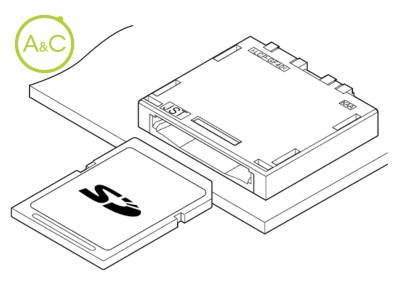

The SD connector is designed for the SD (Secure Digital) memory card. Also applicable to the MMC (Multi Media Card). Card detection switch equipped type is also available.
This connector has a write-protect switch to prevent accidental card data deletion.
Push-push mechanism
The card can be ejected by simple push-push operation.
Card-detection switch
Card-detection switch and write-protect switch equipped types are also available.
Static electricity shielding
GND contacts are designed to be protected against static electricity.
RoHS Compliant
