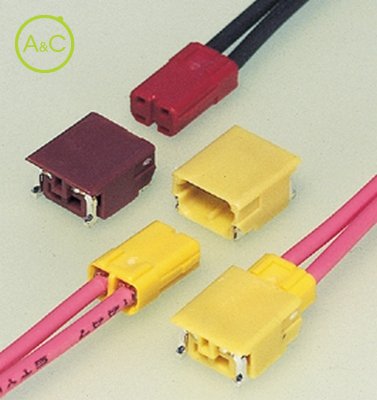

Housing for SFH Connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 2
| Article Number | SFHR-02V-R |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.8mm Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.80 mm |
| Rated Current (ac/dc) | 4 A |
| Rated Voltage (ac/dc) | 350 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Les propriétés diffèrent selon les variantes et sous-variantes

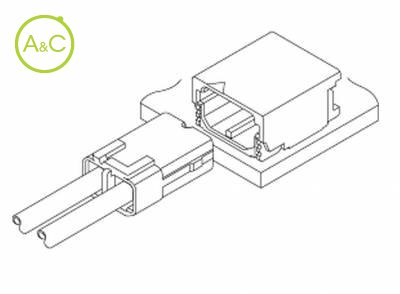

This low profile connector with height of 3.0mm (.118") is designed for connection to stroboSCope flash and realized space saving.
Contact lance
Contact lance with the spring feature is adopted as the method for fixing the contact to the housing.
Countermeasure for inverse insertion and locking feature
The guide for preventing insertion is provided at bottom of inside housing. Housing lock is also added in order to prevent from slipping off due to vibration or mechanical shock.
Standards
UL Recognized E60389
RoHS Compliant
