Contact AWG 30 to 26

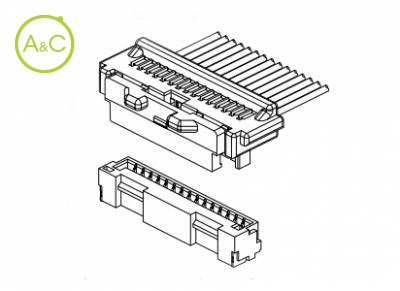

  • GVH CONNECTOR
Télécharger la fiche produit

Applicable Wire

  • AWG 30 to 26
Article Number SGVH-002T-P0.2 SGVHSF-002T-0.2
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
General Description 1.25mm Pitch Disconnectable Crimp Style 1.25mm Pitch Disconnectable Crimp Style
Applicable Wire Size 0.05 to 0.13 (AWG #30 to #26) mm² 0.05 to 0.13 (AWG #30 to #26) mm²
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors
Pitch / Style 1.25 mm 1.25 mm
Rated Current (ac/dc) 1.0 A 1.0 A
Rated Voltage (ac/dc) 50 V 50 V
Pcb Mount Style Surface Mount Technology (SMT) Surface Mount Technology (SMT)
Remark* Normal type Side feed type
Les propriétés diffèrent selon les variantes et sous-variantes
This connector can be mounted on the same PC board layout as the GH connector and has the sucking area on the top of the connector without suction tape. Secure locking structure Prevention of contact deformation Sucking area RoHS Compliant
