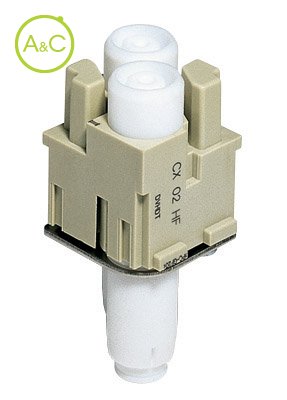

High voltage modular units 2P, crimp connections
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Ilme
Ilme
- General
| Article Number | CX 02 HF* |
| Pollution Degree | 3 |
| Number Of Poles | 2 |
| Connection Type | Crimp connection |
| Contact Type | Female |
| Remark* | Only for bulkhead mounting housings, high construction housings or high construction hoods |
| Required Crimp Contacts | CCFA 0.3, CCFA 0.5, CCFA 0.7, CCFA 1.0, CCFA 1.5, CCFA 2.5, CCFA 3.0, CCFA 4.0, CCFD 0.3, CCFD 0.5, CCFD 0.7, CCFD 1.0, CCFD 1.5, CCFD 2.5, CCFD 3.0, CCFD 4.0, CCFC 0.3, CCFC 0.5, CCFF 0.3, CCFF 0.5, CCF2D 0.3, size 104.27mixo-CCF2D 5.0, CCF2D 0.7, CCF2D 1.0, CCF2D 1.5, CCF2D 2.5, CCF2D 3.0, CCF2D 4.0, CCFJD 0.3, size 104.27mixo-CCFJD 5.0, CCFJD 0.7, CCFJD 1.0, CCFJD 1.5, CCFJD 2.5, CCFJD 3.0, CCFJD 4.0 |
| Extra Information | Contact insert without contacts |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Diameter Male Contact | 2.5 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Max. Rated Current | 16 A |
| Nominal Rated Voltage | 2900/5000 V |
| Over Voltage Category | IV |
| Rated Surge Voltage | 15 kV |
Les propriétés diffèrent selon les variantes et sous-variantes
