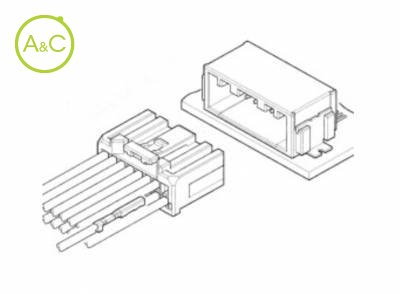

Male Connector Side Entry Single Row for CPT Connector

CPT CONNECTOR

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

JST

Number Of Poles

Article Number	SM02B-CPTK-1A-TB
Number Of Contacts	2
Upper Temperature	+100 °C
Lower Temperature	-40 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Automotive
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 (0.3mm2, Single Circuit) A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)
Remark*	/

Article Number	SM04B1-CPTK-1A-TB	SM04B1-CPTK-1B-TB
Number Of Contacts	4	4
Upper Temperature	+100 °C	+100 °C
Lower Temperature	-40 °C	-40 °C
General Description	2mm Pitch Disconnectable Crimp Style	2mm Pitch Disconnectable Crimp Style
Connection Type	Automotive	Automotive
Pitch / Style	2.00 mm	2.00 mm
Rated Current (ac/dc)	3 (0.3mm2, Single Circuit) A	3 (0.3mm2, Single Circuit) A
Rated Voltage (ac/dc)	50 V	50 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark*	Type A coding	Type B coding

Article Number	SM08B-CPTK-1A-TB
Number Of Contacts	8
Upper Temperature	+100 °C
Lower Temperature	-40 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Automotive
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 (0.3mm2, Single Circuit) A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)
Remark*	/

Les propriétés diffèrent selon les variantes et sous-variantes

Developed in pursuit of miniaturization and low profile as PC board connector for automobile. This connector is surface mounting type, having the spring structure on male terminal disproving the conventional concept. Compact design 2.0mm (.079") pitch is realized miniaturization and low profile as the connector for automobile. Terminal construction Female terminal is designed for simple box structure by having spring structure on male terminal. RoHS Compliant
