Female Terminal AWG 26 to 10
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
Applicable Wire
- AWG 12 to 10
- AWG 14 to 12
- AWG 20 to 18
- AWG 22 to 20
- AWG 24 to 22
- AWG 26
- Awg 18 to 16
Article Number | SNAC-A061T-M2.8 |
Upper Temperature | +100 °C |
Lower Temperature | -40 °C |
General Description | 2.2mm Pitch Disconnectable Crimp Style |
Applicable Wire Size | 0.85 to 1.3 (AWG #18 to #16) mm² |
Connection Type | Automotive |
Pitch / Style | 2.20 mm |
Rated Current (ac/dc) | 2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A |
Rated Voltage (ac/dc) | 14 V |
Les propriétés diffèrent selon les variantes et sous-variantes

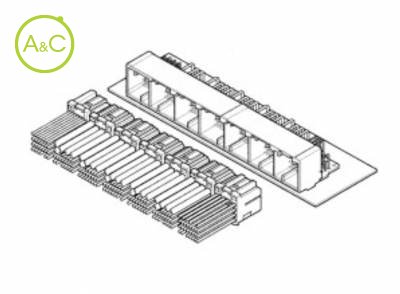

The HIT connector is multi-circuit and miniaturized for ECU for the automobile.
Female connector is divided into seven housings, and considers the ergonomics and workability.
Multi-circuit structure, Miniaturized
Current products available are up to 180-circuit. Although this connector is multi-circuit, it was miniaturized by narrow pitch. The insertion force in the mating operation of one time is decreased by block diversion structure.
Reliability
It conforms to the automotive performance evaluation standard.
Diversity
It is hybrid structures of using 0.64mm(.025") and 2.8mm(.110") terminals. Large current circuit is also available.
RoHS Compliant
