Contact AWG 30 to 22

LEA CONNECTOR

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

JST

Applicable Wire

AWG 26 to 22
AWG 30 to 26

Article Number	SSFH-001T-P0.5
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	LED Connectors (1.8mm Pitch Disconnectable Crimp Style)
Applicable Wire Size	0.13 to 0.33 (AWG #26 to #22) mm²
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.80 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	300 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SSFH-002T-P0.5
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	LED Connectors (1.8mm Pitch Disconnectable Crimp Style)
Applicable Wire Size	0.05 to 0.13 (AWG #30 to #26) mm²
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.80 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	300 V
Pcb Mount Style	Surface Mount Technology (SMT)

Les propriétés diffèrent selon les variantes et sous-variantes

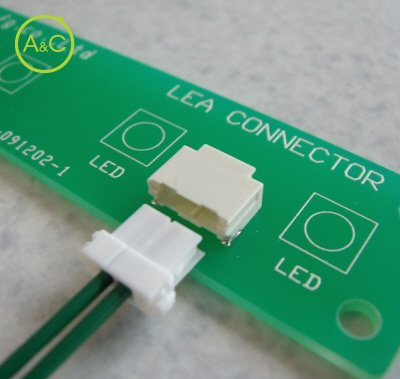

LED Connectors - The LEA Connector is a low profile, surface mount (SMT), LED Connector to be used in LED light strips, LED light controls and other general lighting and LED applications. This is a diSConnectable type LED Connector with a secure locking connection which incorporates a space saving and low profile design for your LED circuit board. This LED Connector is available in 2 circuits with a 3A / 300V current and voltage rating. LED Connector Secure locking mechanism Low Profile design Countermeasure for inverse insertion Contact lance RoHS Compliant
