Applicable Wire
- AWG 32 to 28
Article Number | SSHL-003GA1-P0.2 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm Pitch Disconnectable Crimp Style |
Applicable Wire Size | 0.032 to 0.08 (AWG #32 to #28) mm² |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Les propriétés diffèrent selon les variantes et sous-variantes

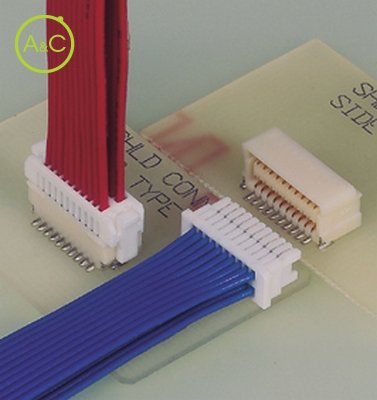

Designed for use in Plasma Display Panels (PDP), Liquid Crystal Displays (LCD) and other small electronics equipment. This 1.0mm pitch dual row connector has secure locking features and strong structural characteristics that make it ideal for compact and challenging applications.

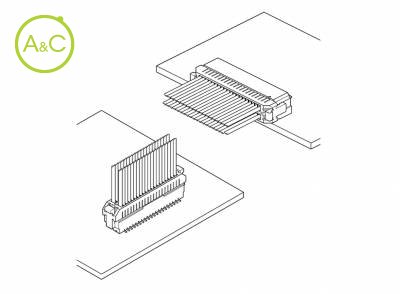

The PC board layout is also compatible with that of our SHD/SRD connectors, which allows for replacement of existing JST connectors.
Secure housing lock structure (for locking type)
Innovative designs of the arm and lock device achieve a secure locking structure, which also realises a space saving feature. In order to realise more space saving, housing without secure locking system is available.
Preventative deformation of contacts
The spring property of the header housing and pin-shaped contacts prevent deformation during harness manufacturing.
A contact lock structure
A contact lock provides a good 'click feeling' when mated (even without a housing lock), which prevents improper mating during assembly.
Strong structure against external force
Thicker housing walls of the header prevent deformation.
Standards
UL Recognized E60389
RoHS Compliant
