Revenir à la liste des produits
Télécharger la fiche produit
Socket
- TCS CONNECTOR
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
Number Of Poles
- 3
- 5
- 7
- 9
- 11
- 13
- 15
- 17
- 19
- 21
- 23
- 25
- 27
- 29
- 31
Article Number | 03CSR-8PK |
Number Of Contacts | 3 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm pitch Disconnectable IDC |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.8 A |
Rated Voltage (ac/dc) | 50 V |
Article Number | 05CSR-8PK |
Number Of Contacts | 5 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm pitch Disconnectable IDC |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.8 A |
Rated Voltage (ac/dc) | 50 V |
Article Number | 07CSR-8PK |
Number Of Contacts | 7 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm pitch Disconnectable IDC |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.8 A |
Rated Voltage (ac/dc) | 50 V |
Article Number | 09CSR-8PK |
Number Of Contacts | 9 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm pitch Disconnectable IDC |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.8 A |
Rated Voltage (ac/dc) | 50 V |
Article Number | 11CSR-8PK |
Number Of Contacts | 11 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm pitch Disconnectable IDC |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.8 A |
Rated Voltage (ac/dc) | 50 V |
Article Number | 13CSR-8PK |
Number Of Contacts | 13 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm pitch Disconnectable IDC |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.8 A |
Rated Voltage (ac/dc) | 50 V |
Article Number | 15CSR-8PK |
Number Of Contacts | 15 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm pitch Disconnectable IDC |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.8 A |
Rated Voltage (ac/dc) | 50 V |
Article Number | 17CSR-8PK |
Number Of Contacts | 17 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm pitch Disconnectable IDC |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.8 A |
Rated Voltage (ac/dc) | 50 V |
Article Number | 19CSR-8PK |
Number Of Contacts | 19 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm pitch Disconnectable IDC |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.8 A |
Rated Voltage (ac/dc) | 50 V |
Article Number | 21CSR-8PK |
Number Of Contacts | 21 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm pitch Disconnectable IDC |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.8 A |
Rated Voltage (ac/dc) | 50 V |
Article Number | 23CSR-8PK |
Number Of Contacts | 23 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm pitch Disconnectable IDC |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.8 A |
Rated Voltage (ac/dc) | 50 V |
Article Number | 25CSR-8PK |
Number Of Contacts | 25 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm pitch Disconnectable IDC |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.8 A |
Rated Voltage (ac/dc) | 50 V |
Article Number | 27CSR-8PK |
Number Of Contacts | 27 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm pitch Disconnectable IDC |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.8 A |
Rated Voltage (ac/dc) | 50 V |
Article Number | 29CSR-8PK |
Number Of Contacts | 29 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm pitch Disconnectable IDC |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.8 A |
Rated Voltage (ac/dc) | 50 V |
Article Number | 31CSR-8PK |
Number Of Contacts | 31 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm pitch Disconnectable IDC |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.8 A |
Rated Voltage (ac/dc) | 50 V |
Les propriétés diffèrent selon les variantes et sous-variantes

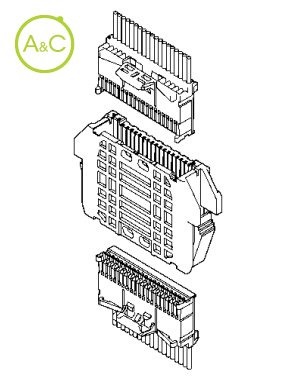

This is a 1.0mm pitch insulation displacement connector with the secure locking structure to prevent coming off the connector and incomplete mating.
1.8A in rated current was realized by using AWG#27.
Secure looking structure
Countermeasure for unexpected prying
RoHS Compliant
