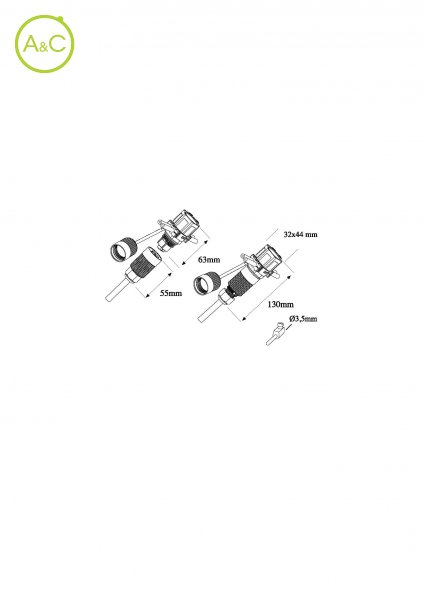

Insert power socket piercing clip connector

Télécharger la fiche produit

Number Of Poles

  • 2
Article Number THB.370.A2A
Number Of Contacts 2
Protection Degree IP65
Upper Temperature +125 °C
Lower Temperature -40 °C
Rated Voltage 400
Pollution Degree 2
Rated Current 17.5 A
Contact Terminal Piercing clip terminal
Terminals Piercing
Cable Section 0,5 - 1,5 mm²
Min-max Cable Diameter max 7,0 (cable to be pierced) / 7,0 - 12,0 mm
T Marking T85 °C
Impulse Withstand Category II
Impulse Withstand Voltage 4 kV
Tracking Index PTI 175
Lock Nuts PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Connector Housing PA66 UL94 V0/V2 GWT 960°C black - grey RAL 7035
Terminal Block Housing PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Grommets TPE
Seals SEBS
Contact Screw Terminals Brass nickel plated
Standard / Piercing Screws M3 steel zinc brass plated
Standards TEST REPORT EN60529:1991+A1:2000 IP65:12.5 L/min x 3 min EN60998-1:2004 HEATING RESISTANCE
Les propriétés diffèrent selon les variantes et sous-variantes
