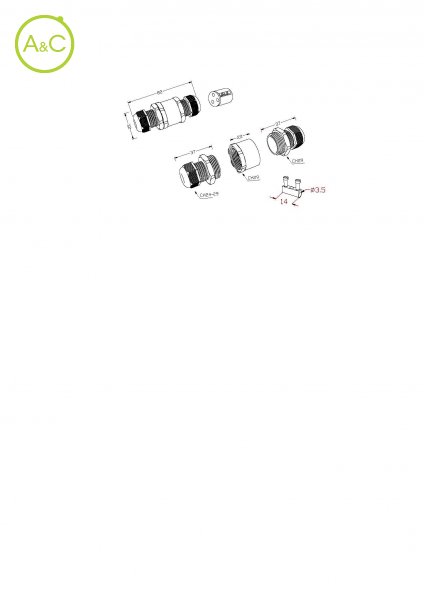

High protection In-line and junction with innovative cable glands

I Type, End Barrier
Ø 10,5-17mm

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Techno

Number Of Poles

Article Number	THB.390.D2A.4	THB.390.D2A.5	THB.390.D2A.6
Number Of Contacts	2	2	2
Protection Degree	IP68 5 bar	IP68 5 bar	IP68 5 bar
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	32 A	32 A	32 A
Product Shape (type: I, L, T, Y)	I	I	I
Contact Terminal	End barrier contact	End barrier contact	End barrier contact
Terminals	Screw	Screw	Screw
Cable Section	max 4,0 mm²	max 4,0 mm²	max 4,0 mm²
Cable Diameter Min-max A	10,5 - 14,0 mm	10,5 - 14,0 mm	14,0 - 17,0 mm
Cable Diameter Min-max B	10,5 - 14,0 mm	14,0 - 17,0 mm	14,0 - 17,0 mm
Cable Entries/exits	2 ways	2 ways	2 ways
T Marking	T125 °C	T125 °C	T125 °C
Protection Degree Details	20 - 50 m / 1 h	20 - 50 m / 1 h	20 - 50 m / 1 h
Tracking Index	PTI 250	PTI 250	PTI 250
Connector Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Cable Glands	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Co-moulded Seals	TPE Rubber	TPE Rubber	TPE Rubber
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc plated	M3 steel zinc plated
Standards	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004

Article Number	THB.390.D3A.4	THB.390.D3A.5	THB.390.D3A.6
Number Of Contacts	3	3	3
Protection Degree	IP68 5 bar	IP68 5 bar	IP68 5 bar
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	32 A	32 A	32 A
Product Shape (type: I, L, T, Y)	I	I	I
Contact Terminal	End barrier contact	End barrier contact	End barrier contact
Terminals	Screw	Screw	Screw
Cable Section	max 4,0 mm²	max 4,0 mm²	max 4,0 mm²
Cable Diameter Min-max A	10,5 - 14,0 mm	10,5 - 14,0 mm	14,0 - 17,0 mm
Cable Diameter Min-max B	10,5 - 14,0 mm	14,0 - 17,0 mm	14,0 - 17,0 mm
Cable Entries/exits	2 ways	2 ways	2 ways
T Marking	T125 °C	T125 °C	T125 °C
Protection Degree Details	20 - 50 m / 1 h	20 - 50 m / 1 h	20 - 50 m / 1 h
Tracking Index	PTI 250	PTI 250	PTI 250
Connector Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Cable Glands	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Co-moulded Seals	TPE Rubber	TPE Rubber	TPE Rubber
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc plated	M3 steel zinc plated
Standards	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004

Les propriétés diffèrent selon les variantes et sous-variantes
