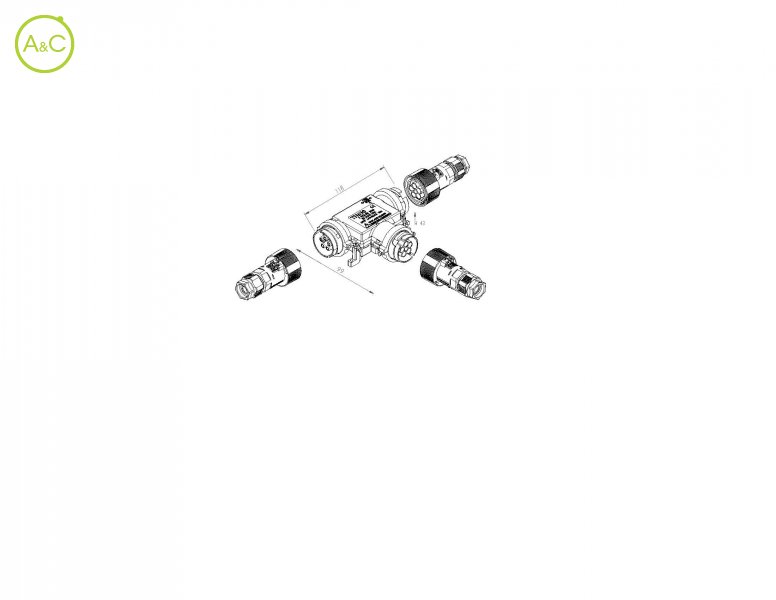

16A/ 24A current distributor

Avez-vous des questions sur ce produit?

Télécharger la fiche produit

Plus d’infos sur cette marque:

Article Number	THH.631.B2A	THP.631.B2A
Number Of Contacts	2	2
Protection Degree	IP65	IP65
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	400	400
Pollution Degree	2	2
Rated Current	25 A	17.5 A
Plug - Socket	2 output: PLUG THB.405 1 input: SOCKET THB.405	2 output: PLUG THB.405 1 input: SOCKET THB.405
Contact Terminal	Contact screw terminals for cable section < 1,0 mm²	Piercing clip terminal max 1,5 mm²
Terminals	Screw	Piercing
Min-max Cable Diameter	7,0 - 14,0 mm	7,0 - 14,0 mm
Cable Entries/exits	3 ways	3 ways
T Marking	T85 °C	T85 °C
Impulse Withstand Category	II	II
Impulse Withstand Voltage	4 kV	4 kV
Tracking Index	PTI 175	PTI 175
Distributor And Connector Housing	PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035
Grommets	TPE/SEBS	TPE/SEBS
Seals	TPE/SEBS	TPE/SEBS
Fixing Screws Of Lid	M3 x 12,0 mm inox stainless steel self-locking screw	M3 x 12,0 mm inox stainless steel self-locking screw
Standards	EN60998-1:2004 HEATING RESISTANCE EN61984:2001 EN60529:1991+A1:2000	EN60998-1:2004 HEATING RESISTANCE EN61984:2001 EN60529:1991+A1:2000

Article Number	THH.631.B3A	THP.631.B3A
Number Of Contacts	3	3
Protection Degree	IP65	IP65
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	400	400
Pollution Degree	2	2
Rated Current	25 A	17.5 A
Plug - Socket	2 output: PLUG THB.405 1 input: SOCKET THB.405	2 output: PLUG THB.405 1 input: SOCKET THB.405
Contact Terminal	Contact screw terminals for cable section < 1,0 mm²	Piercing clip terminal max 1,5 mm²
Terminals	Screw	Piercing
Min-max Cable Diameter	7,0 - 14,0 mm	7,0 - 14,0 mm
Cable Entries/exits	3 ways	3 ways
T Marking	T85 °C	T85 °C
Impulse Withstand Category	II	II
Impulse Withstand Voltage	4 kV	4 kV
Tracking Index	PTI 175	PTI 175
Distributor And Connector Housing	PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035
Grommets	TPE/SEBS	TPE/SEBS
Seals	TPE/SEBS	TPE/SEBS
Fixing Screws Of Lid	M3 x 12,0 mm inox stainless steel self-locking screw	M3 x 12,0 mm inox stainless steel self-locking screw
Standards	EN60998-1:2004 HEATING RESISTANCE EN61984:2001 EN60529:1991+A1:2000	EN60998-1:2004 HEATING RESISTANCE EN61984:2001 EN60529:1991+A1:2000

Article Number	THH.631.B5A	THP.631.B5A
Number Of Contacts	5	5
Protection Degree	IP65	IP65
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	400	400
Pollution Degree	2	2
Rated Current	17.5 A	17.5 A
Plug - Socket	2 output: PLUG THB.405 1 input: SOCKET THB.405	2 output: PLUG THB.405 1 input: SOCKET THB.405
Contact Terminal	Contact screw terminals for cable section < 1,0 mm²	Piercing clip terminal max 1,5 mm²
Terminals	Screw	Piercing
Min-max Cable Diameter	7,0 - 14,0 mm	7,0 - 14,0 mm
Cable Entries/exits	3 ways	3 ways
T Marking	T85 °C	T85 °C
Impulse Withstand Category	II	II
Impulse Withstand Voltage	6 kV	6 kV
Tracking Index	PTI 175	PTI 175
Distributor And Connector Housing	PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035
Grommets	TPE/SEBS	TPE/SEBS
Seals	TPE/SEBS	TPE/SEBS
Fixing Screws Of Lid	M3 x 12,0 mm inox stainless steel self-locking screw	M3 x 12,0 mm inox stainless steel self-locking screw
Standards	EN60998-1:2004 HEATING RESISTANCE EN61984:2001 EN60529:1991+A1:2000	EN60998-1:2004 HEATING RESISTANCE EN61984:2001 EN60529:1991+A1:2000

Article Number	THH.631.B6A	THP.631.B6A
Number Of Contacts	6	6
Protection Degree	IP65	IP65
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	400	400
Pollution Degree	2	2
Rated Current	17.5 A	17.5 A
Plug - Socket	2 output: PLUG THB.405 1 input: SOCKET THB.405	2 output: PLUG THB.405 1 input: SOCKET THB.405
Contact Terminal	Contact screw terminals for cable section < 1,0 mm²	Piercing clip terminal max 1,5 mm²
Terminals	Screw	Piercing
Min-max Cable Diameter	7,0 - 14,0 mm	7,0 - 14,0 mm
Cable Entries/exits	3 ways	3 ways
T Marking	T85 °C	T85 °C
Impulse Withstand Category	II	II
Impulse Withstand Voltage	6 kV	6 kV
Tracking Index	PTI 175	PTI 175
Distributor And Connector Housing	PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035
Grommets	TPE/SEBS	TPE/SEBS
Seals	TPE/SEBS	TPE/SEBS
Fixing Screws Of Lid	M3 x 12,0 mm inox stainless steel self-locking screw	M3 x 12,0 mm inox stainless steel self-locking screw
Standards	EN60998-1:2004 HEATING RESISTANCE EN61984:2001 EN60529:1991+A1:2000	EN60998-1:2004 HEATING RESISTANCE EN61984:2001 EN60529:1991+A1:2000

Les propriétés diffèrent selon les variantes et sous-variantes
