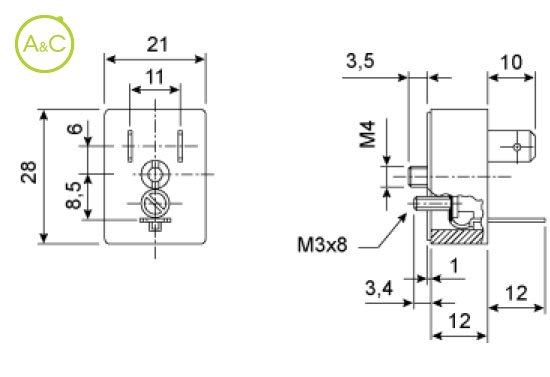

Style B-ind rectangular receptacle connector

  • With 1 screw
Télécharger la fiche produit

Number Of Poles

  • 2+G
Article Number VR11 02A0S VR11 02A1S
Number Of Contacts 2+G 2+G
Protection Degree IP65 IP65
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
Housing Material PA66 30%GF PA66 30%GF
Housing Oil Resistance Occasional contact Occasional contact
Contact Material Nickel plated CuZn Nickel plated CuZn
Max. Wire Section 1 mm² 1 mm²
Voltage Vdc 1 to 250 1 to 250
Voltage Vac 1 to 250 1 to 250
Max. Currrent 10 A @40°C 10 A @40°C
Included Accessories 1 central screw 1 screw M3x8 1 profile gasket 1 central screw 1 screw M3x8 1 profile gasket
Les propriétés diffèrent selon les variantes et sous-variantes
