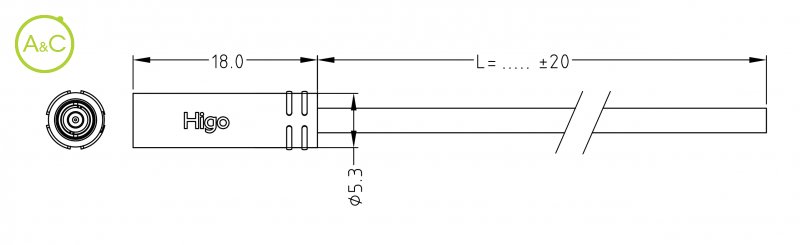

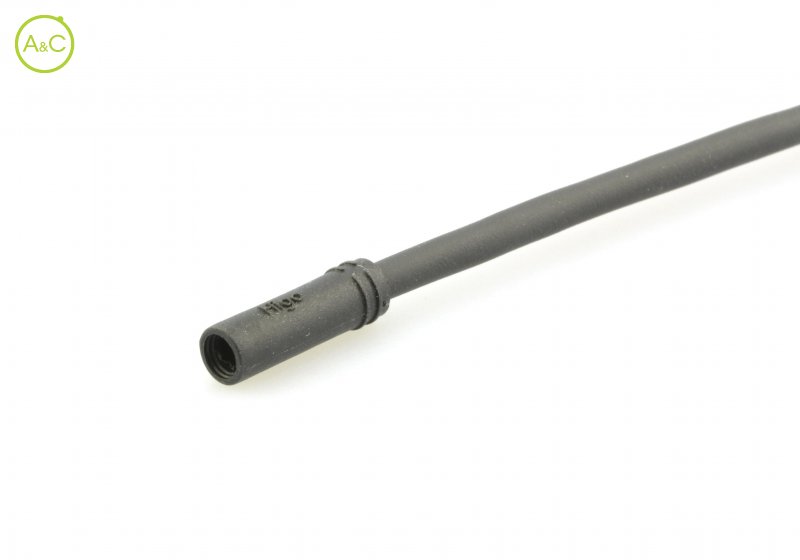

Micro B Male plug connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	Z205BG P 00 DS 1000	Z205BG P 00 AW 1000	Z205BG P 00 S4 1000
Color	Black	Black	Black
Connector Diameter	5.3 mm	5.3 mm	5.3 mm
Wire Section	2 x 0,14 mm²	2 x 0,14 mm²	2 x 0,34 mm²
Cable Length	1000 mm	1000 mm	1000 mm
Protection Degree	IP67	IP67	IP67
Mating Cycles	200 times	200 times	200 times
Upper Temperature	80 °C	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ	≤10 mΩ
Material Of Contact	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Cable Diameter	2.4 mm	2.4 mm	3.9 mm
Insulation Wire	FEP	FEP	FEP
Remark *	Other cable length/type on request	Other cable length/type on request	Other cable length/type on request
Rated Current	2 A	2 A	2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ	≥20 MΩ
Contact Plating	Gold over Nickel	Gold over Nickel	Gold over Nickel
Fitting Length	29.5 mm	29.5 mm	29.5 mm
Material Jacket	PVC	TPU	TPU

Les propriétés diffèrent selon les variantes et sous-variantes
