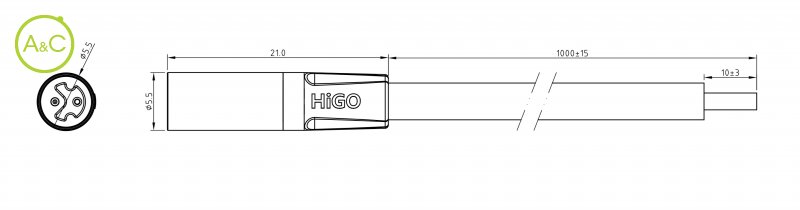

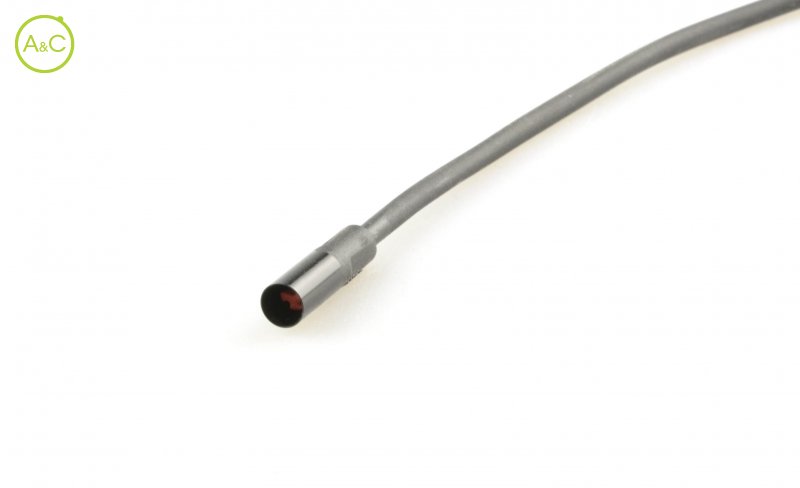

Micro M male cable connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Higo

Number Of Poles
- 2
Article Number | Z205MG P 00 H1 1000 |
Color | Red |
Connector Diameter | 5.5 mm |
Wire Section | 2 x 0,13 mm² |
Cable Length | 1000 mm |
Protection Degree | IP67 |
Mating Cycles | 50 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Phosphor Bronze |
Insulation Wire | PVC |
Remark * | Other cable length/type on request |
Rated Current | 2 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Gold over Nickel |
Fitting Length | 30 mm |
Material Jacket | TPU |
Les propriétés diffèrent selon les variantes et sous-variantes
